Spessore rivestimento magnetico YT8200

Spessore rivestimento magnetico YT8200 Istruzioni Manuale d'uso Spessore rivestimento magnetico YT8200 Il PDF
Questo Spessore rivestimento magnetico YT8200 Gli strumenti sono certificati con
certify
1 Anni di garanzia (Periodo di sostegno aggiuntivo di 3 anni)

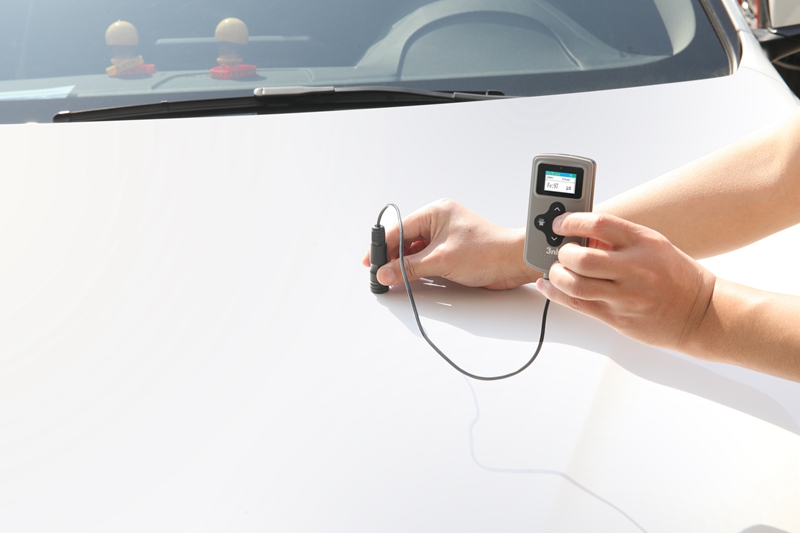

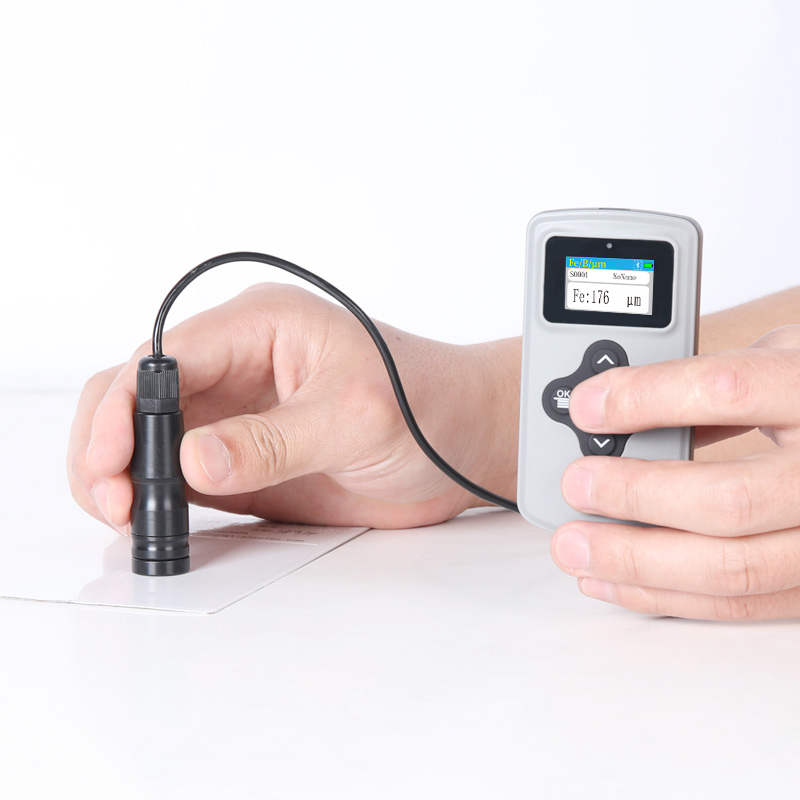

YT8200 is a domestic coating thickness gauge made by 3nh Company, which has its own intellectual property right, it can quickly and accurately detect the thickness of non-magnetic coating on ferromagnetic metal substrate by magnetic method。

YT8200 aluminum-based coating thickness gauge has the advantages of accurate measurement, large measurement range, multiple calibration modes, multiple measurement modes, convenient positioning and powerful functions, widely used in manufacturing, metal processing, chemical industry and other surface engineering testing fields, coating surface treatment industry is the basic equipment.


The Fe probe can detect the thickness of non-magnetic coatings sprayed on magnetic substrates (such as steel), such as the paint coating, powder spraying coating, porcelain coating, chromium coating, copper coating, zinc coating, etc.

Features of YT8200 economic split type iron-based coating thickness gauge

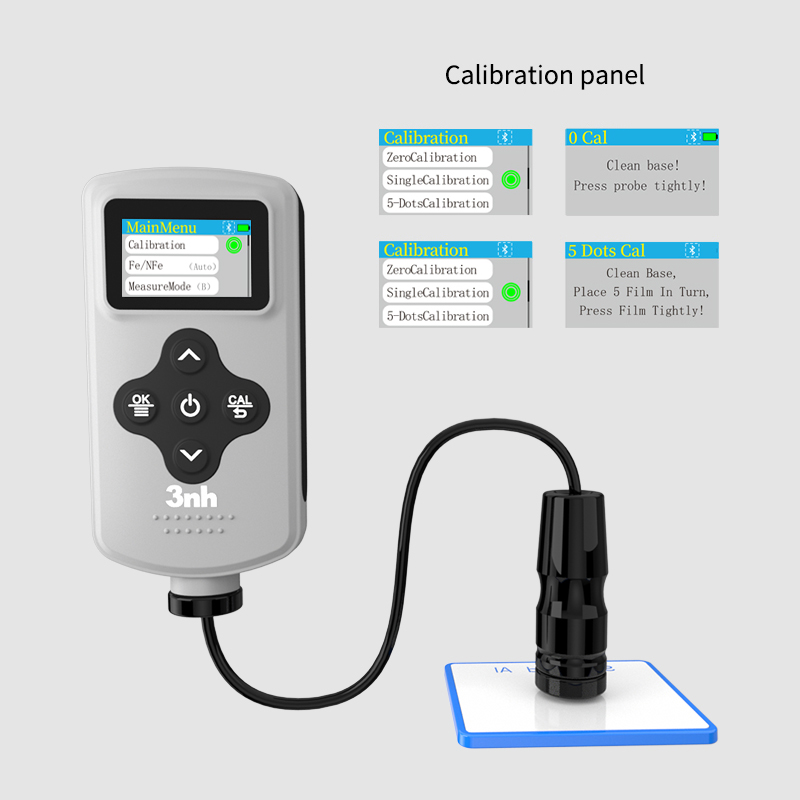

1、Support Zero Point, single point, five points

Support a variety of calibration methods, testing more convenient, to meet the needs of higher test accuracy


2、IPS pure color screen, smooth operation, large storage capacity

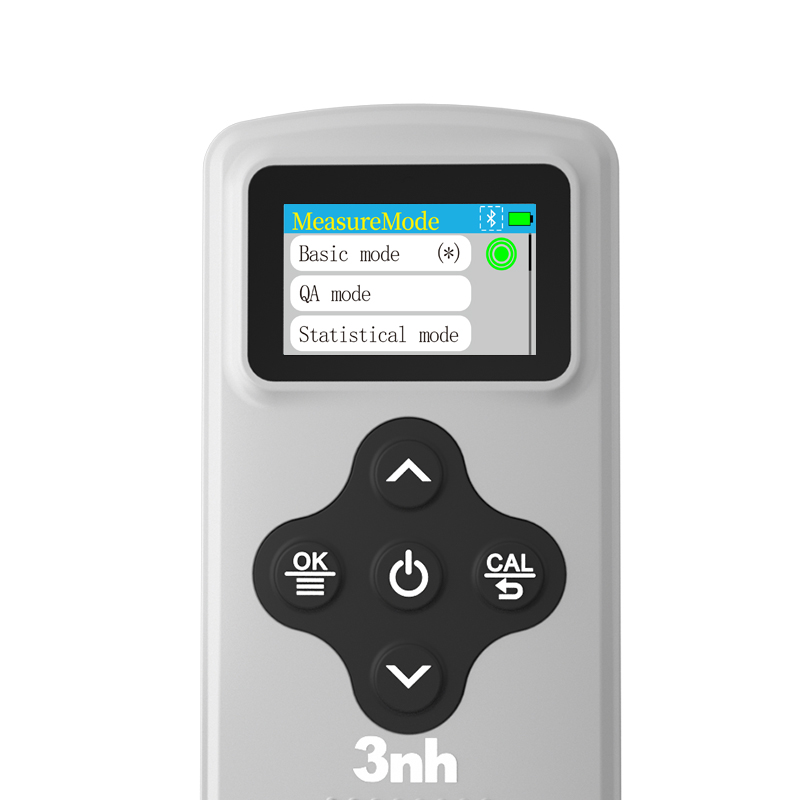

3、Measurement mode rich

Coating thickness tester YT8200 has basic mode, quality control mode, continuous mode, statistical mode for choice, to adapt to more test scenarios


4、The radius of convex plane and concave plane

Precisely measured at 5mm and 10mm respectively

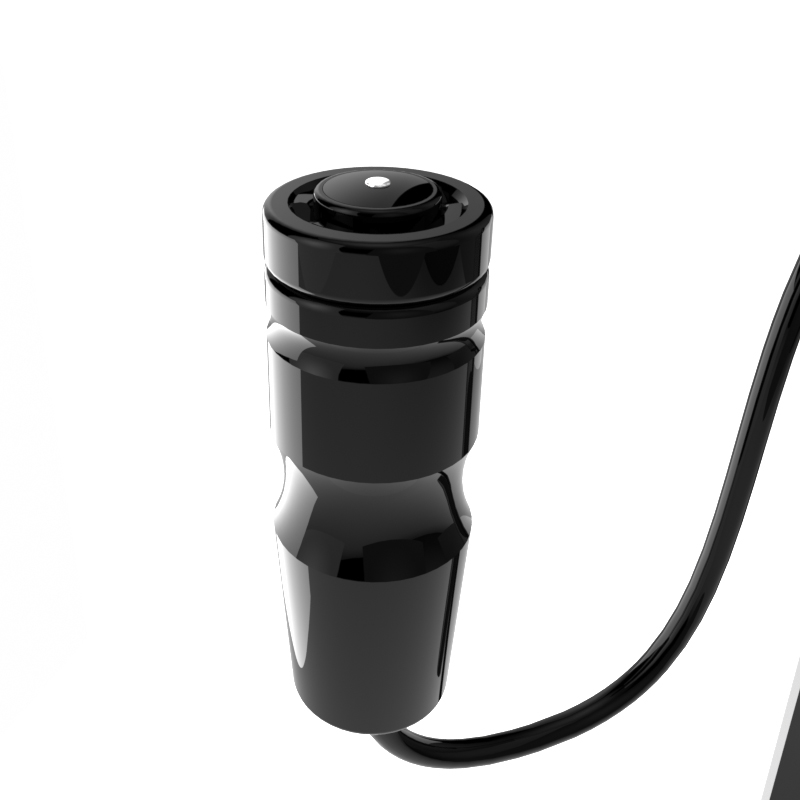

5、High sensitive probe

Independently developed high sensitive probe response speed, testing more accurate

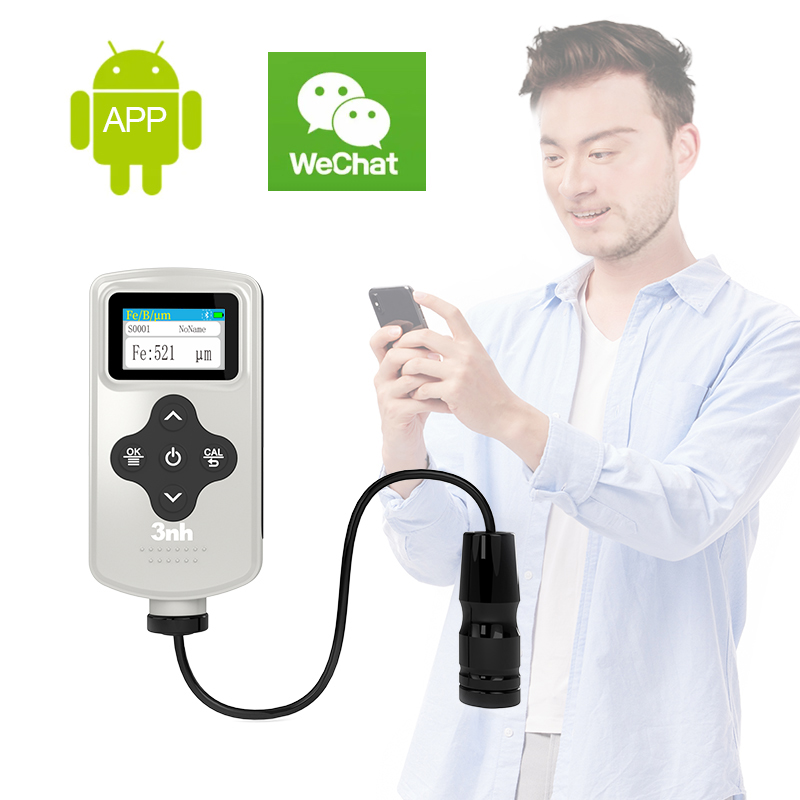

6.Support Bluetooth, mobile APP, We chat applet more extended functions

It can transmit measurement data to mobile phone through Bluetooth, edit and process corresponding data, and output test report.



Technical parameters of YT8200 economic split type iron-based coating thickness gauge



ModelYT8200
Product NameEconomical split type iron-based coating thickness gauge YT8200

Characteristic
YT series coating thickness gauge made by 3nh Company, which has its own intellectual property right, it can quickly and accurately detect the thickness of non-magnetic coating on ferromagnetic metal substrate by magnetic method。

It is widely used in surface engineering testing fields such as manufacturing, metal processing, chemical industry, and so on, because of its high precision, large measuring range, multi-calibration mode, multi-measurement mode, convenient positioning and powerful function, is The coating surface treatment profession basic equipment.

The Fe-based probe can detect the thickness of non-magnetic coatings on various magnetic substrates (such as steel) , such as paint, powder, porcelain, chromium, copper, zinc, etc. .
StandardASTM B499,ASTM D1400，ASTM D709;
ISO 2178,ISO 2360，ISO 2808;
GB/T 4956,JB/T 8393
MatrixFe
Probe typeSplit type
ResolutionResolution:1μm
Measurement range0~2000μm
Measurement accuracyzero calibration:±(3%H+1)μm；
Two point calibration:±(1~3%H+1.5)μm；
note: H is the sample thickness
Display screenIPS Full color screen, 1.14inch
InterfaceType C USB;Button
Stored dataOne thousand
Battery capacityLithium-ion battery, fully charged, one-time continuous test 10000
Measurement modeBasic Model, quality control model, continuous model, statistical model
Minimum measurement size10×10mm
Minimum measurement thicknessmagnetic：0.2mm
Minimum curvatureconvex radius 5mm; concave radius 10mm
Unitμm/mil
Size102×50×20mm(Probe headØ18x69)
Weight80g
Working temperature0~40ºC(10~90%RH without condensation)
Storage temperature -10~50ºC
Software SupportWeChat applet,HarmonyOS,Windows,Android,IOS
Standard accessories1 base (iron base), wrist strap,，Wipe cloth, USB cable, Positioning film, calibration film
Optional accessoriesPrinter，5V-2A Power adapter
Note:Calibration film a set of 5(slightly different thickness) , technical parameters only for reference, to the actual sales of products shall prevail


I nostri stimati clienti

  • Toyota
  • Shaktiman Agro LTD
  • cliente Ford
  • cliente adiente
  • sistemi ferroviari titagarh
  • Gruppo JSW
  • Cucinetti Texspin Limited
  • Honda

FAQ su  Gauge di spessore del rivestimento

Yes. Ultrasonic coating thickness gauges can pinpoint layers within a multi-coat system. Users can examine the separate thicknesses of a primer, base coat, and clear coat. In contrast, magnetic and eddy current gauges usually measure the overall thickness of the coating.

Coating thickness is best measured with a coating thickness gauge specific for the type of substrate. Magnetic and eddy gauges are best for metals while ultrasonic gauges are best for non-metals. These devices provide measurement accuracy and consistency.

A digital coating thickness gauge is used to measure the thickness of dried paint. It measures coating thickness specification non-destructively, helping to maintain consistent quality and performance.


Compared to an analog model, digital gauges not only provide more accuracy, but also allow for greater repeatability and are easier to work with. Advanced digital gauges allow for features such as data storage and automatic calibration and statistical analysis. For these reasons, digital gauges are the preferred choice for professional applications.


Consistency in calibration is important to account for imbalances arising from wear and tear of the probe, probe pressure, variation from the environment, and fluctuations in daily usage. This is also necessary to maintain the best quality to various international standards.
