Strumenti di misura dello spessore del rivestimento YT8300

Strumenti di misura dello spessore del rivestimento YT8300 Istruzioni Manuale d'uso Strumenti di misura dello spessore del rivestimento YT8300 Il PDF
Questo Strumenti di misura dello spessore del rivestimento YT8300 Gli strumenti sono certificati con
certify
1 Anni di garanzia (Periodo di sostegno aggiuntivo di 3 anni)

Standard version YT8300 for split dual-use coating thickness gauge

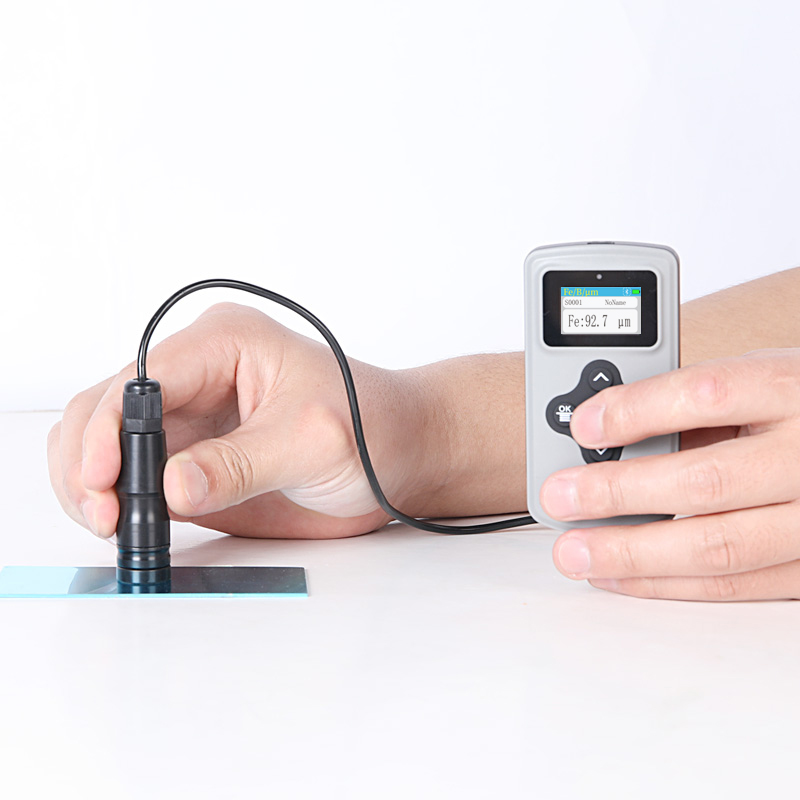

YT8300 is a standard split dual-use coating thickness gauge made by 3nh Company. It is a domestic coating thickness gauge with independent intellectual property right. It can quickly and accurately detect the coating thickness on metal substrate. YT8300 coating thickness measuring instrument fully conforms to ISO 2178, ISO 2360, GB/t 4956, GB/t 4957, ASTM B499 and other standards of magnetic method and Eddy current method testing principle.

Professional version YT8300 split dual-use coating thickness gauge has the advantages of accurate measurement, large measuring range, multi-calibration mode, multi-measurement mode, convenient positioning and powerful function, widely used in manufacturing, metal processing, chemical industry and other surface engineering testing fields, coating surface treatment industry is the basic equipment.


The Fe-based probe can detect the thickness of non-magnetic coatings on various magnetic substrates (such as steel) , such as paint, powder, porcelain, chromium, copper, zinc, etc..


NFe based probes detect the thickness of all insulating coatings, such as paint, powder, porcelain, etc. , applied to non-magnetic metal substrates such as aluminum, copper, brass, stainless steel, etc. .

Characteristics of standard Version YT8300

1、Large range3000μm

Maximum measurement thickness 3000 μm

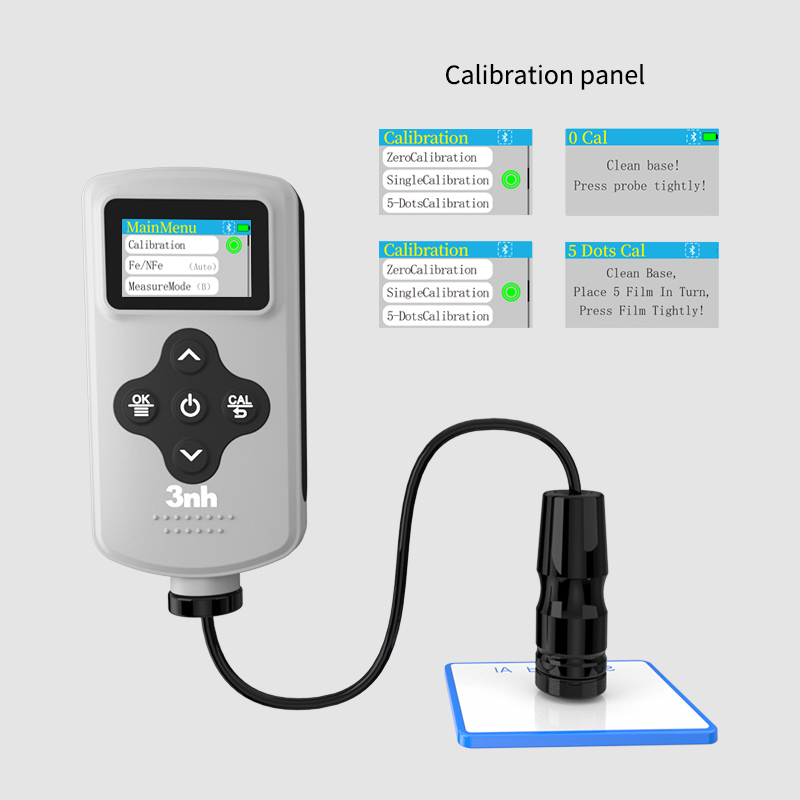

2、Support Zero Point, single point, five points

Support a variety of calibration methods, testing more convenient, to meet the needs of higher test accuracy


3、IPS pure color screen, smooth operation, large storage capacity

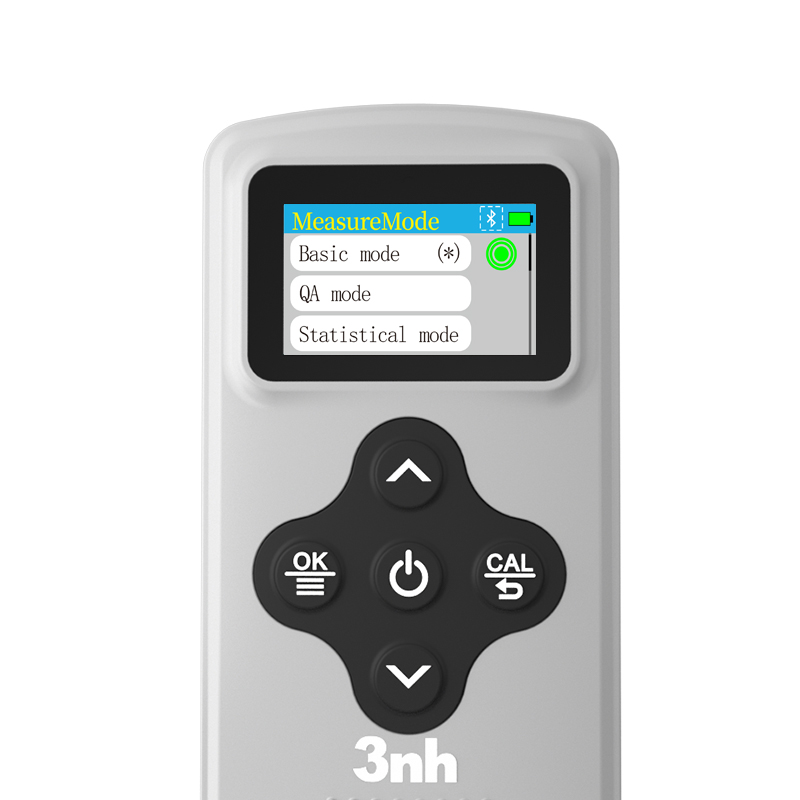

4、Measurement mode rich

Coating thickness tester YT8300 has basic mode, quality control mode, continuous mode, statistical mode for choice, to adapt to more test scenarios


5、Non-destructive testing, automatic identification of substrate type coating thickness Tester

YT8300 can automatically identify magnetic, non-magnetic substrate, non-destructive testing does not harm samples, enhance the detection speed。


6、The radius of convex plane and concave plane

Precisely measured at 5mm and 10mm respectively

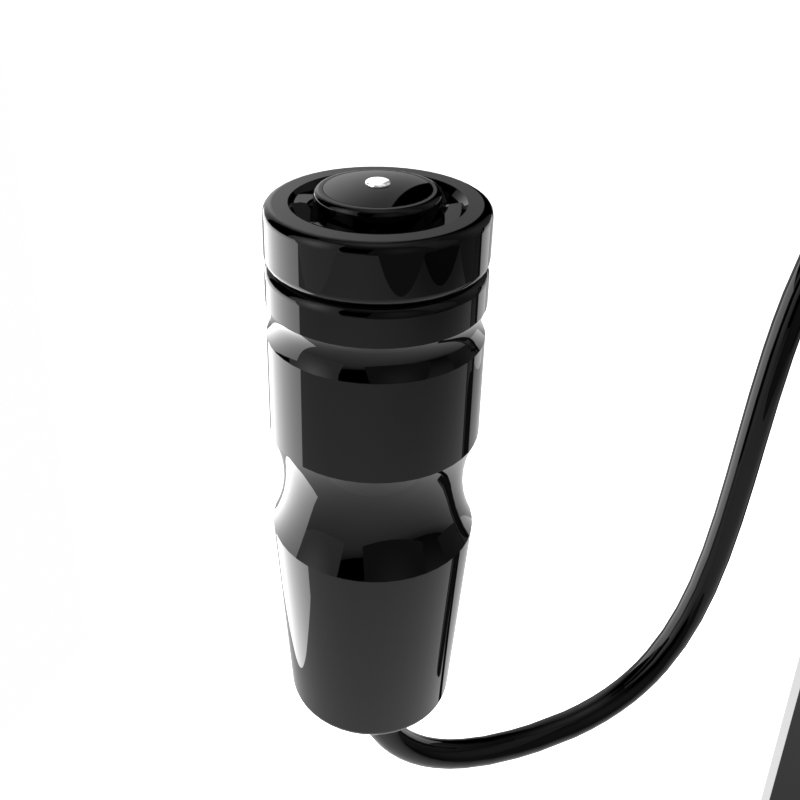

7、High sensitive probe

Independently developed high sensitive probe response speed, testing more accurate

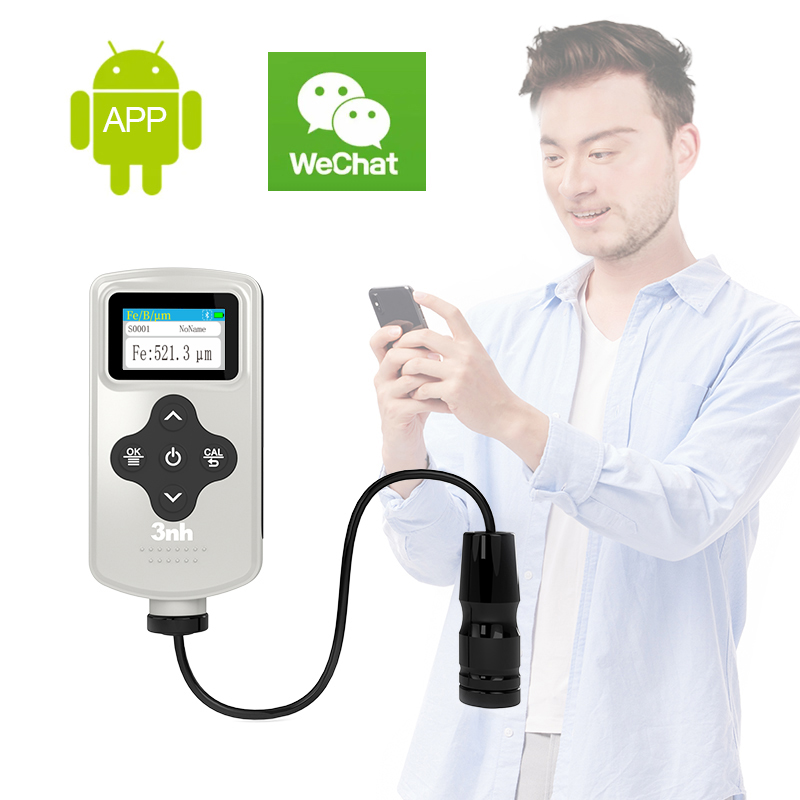

8、Support Bluetooth, more mobile APP extensions

Can be instant through Bluetooth measurement data transfer to the hands of the APP, the corresponding data editing and processing, output test report



Technical parameters of Standard Edition YT8300 split dual-use coating thickness gauge



ModelYT8300
Product NameStandard Edition YT8300 split dual-use coating thickness gauge

Characteristic
YT series coating thickness tester is made by 3NH company. It is a domestic coating thickness tester with independent intellectual property rights. It can quickly and accurately detect the coating thickness on metal substrate. The instrument fully conforms to ISO 2178, ISO 2360, GB/t 4956, GB/t 4957, ASTM B499 and other standards of magnetic and Eddy current testing principles.
It is widely used in surface engineering testing fields such as manufacturing, metal processing, chemical industry, and so on, because of its high precision, large measuring range, multi-calibration mode, multi-measurement mode, convenient positioning and powerful function, is The coating surface treatment profession basic equipment.
The Fe-based probe can detect the thickness of non-magnetic coatings on various magnetic substrates (such as steel) , such as paint, powder, porcelain, chromium, copper, zinc, etc. .
NFe based probes detect the thickness of all insulating coatings, such as paint, powder, porcelain, etc. , applied to non-magnetic metal substrates such as aluminum, copper, brass, stainless steel, etc. .
StandardASTM B499,ASTM D1400，ASTM D709;
ISO 2178,ISO 2360，ISO 2808;
GB/T 4956,JB/T 8393
MatrixFe/NFe
Probe typesplit dual-use
Resolution0.1μm
Measurement range0~3000μm
Measurement accuracyzero calibration:±(3%H+1)μm；
Two point calibration:±(1~3%H+1.5)μm；
note: H is the sample thickness
Display screenIPS Full color screen, 1.14inch
InterfaceType C USB;Bluetooth 5.0；Button
Stored data3,500, massive storage via mobile APP
Battery capacityLithium-ion battery, fully charged, one-time continuous test 10000
Measurement modeBasic Model, quality control model, continuous model, statistical model
Minimum measurement sizeMagnetism：10×10mm；
Non-magnetic：10×10mm
Minimum measurement thicknessMagnetism：0.2mm；
Non-magnetic：0.05mm
Minimum curvatureconvex radius 5mm; concave radius 10mm
Unitμm/mil
Size102×50×20mm(Probe headØ18x69)
Weight80g
Working temperature0~40ºC(10~90%RH without condensation)
Storage temperature -10~50ºC
Software SupportWeChat applet,HarmonyOS,Windows,Android,IOS

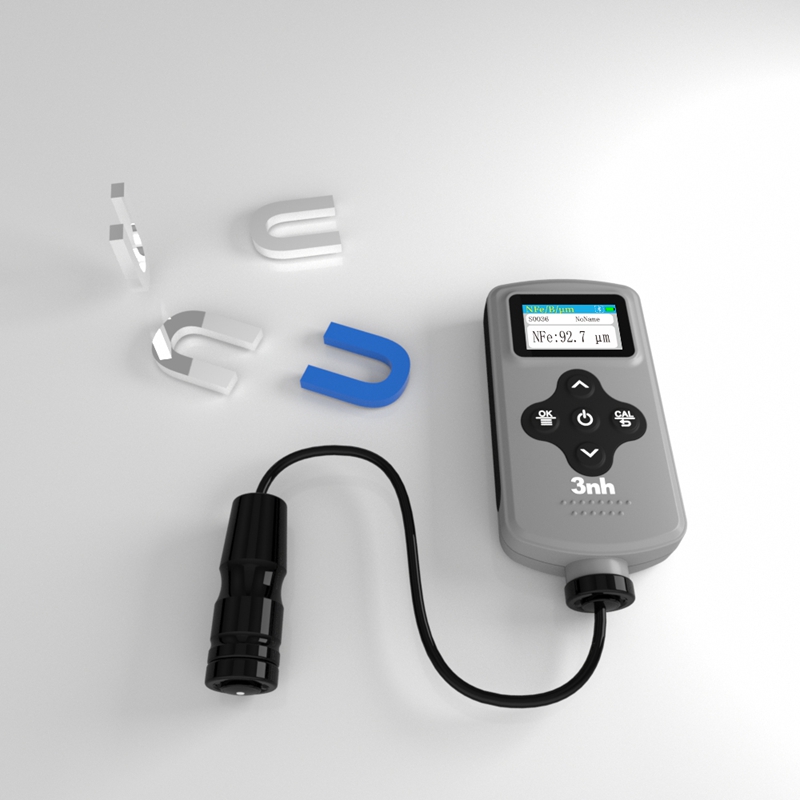

Standard accessories2 base (Aluminium Matrix and Iron Matrix), wrist strap,，Wipe cloth, USB cable, positioning film, calibration film
Optional accessoriesPrinter，5V-2A Power adapter
Note：Calibration film a set of 5(slightly different thickness) , technical parameters only for reference, to the actual sales of products shall prevail


I nostri stimati clienti

  • Gruppo JSW
  • alleati Nippon
  • Gruppo SKF
  • Cucinetti Texspin Limited
  • cliente adiente
  • Toyota
  • Shaktiman Agro LTD
  • yazaki cliente

FAQ su  Gauge di spessore del rivestimento

You should not attempt measuring on surfaces that are dirty, oily, or rough, as these surfaces will not provide an accurate reading. Always calibrate the paint thickness tester and make sure to select the proper probe for the substrate as well. Proper execution will bring about consistency as well as trustworthiness to the readings.


Different types of substrates require different kinds of digital gauges. Magnetic gauges are for ferrous metals, eddy current gauges are for non-ferrous metals and ultrasonic gauges are for any non-metal composites like plastics. Careful selection of a gauge is the most important factor for obtaining accurate measurements.


Yes. Ultrasonic coating thickness gauges can pinpoint layers within a multi-coat system. Users can examine the separate thicknesses of a primer, base coat, and clear coat. In contrast, magnetic and eddy current gauges usually measure the overall thickness of the coating.

Compared to an analog model, digital gauges not only provide more accuracy, but also allow for greater repeatability and are easier to work with. Advanced digital gauges allow for features such as data storage and automatic calibration and statistical analysis. For these reasons, digital gauges are the preferred choice for professional applications.


Once ignited, the gauge will select the correct substrate mode. The probe should be placed flat on the coated surface. The thickness of the coating will show on the screen. Measurements should be taken on different areas of the surface to ensure accuracy.
