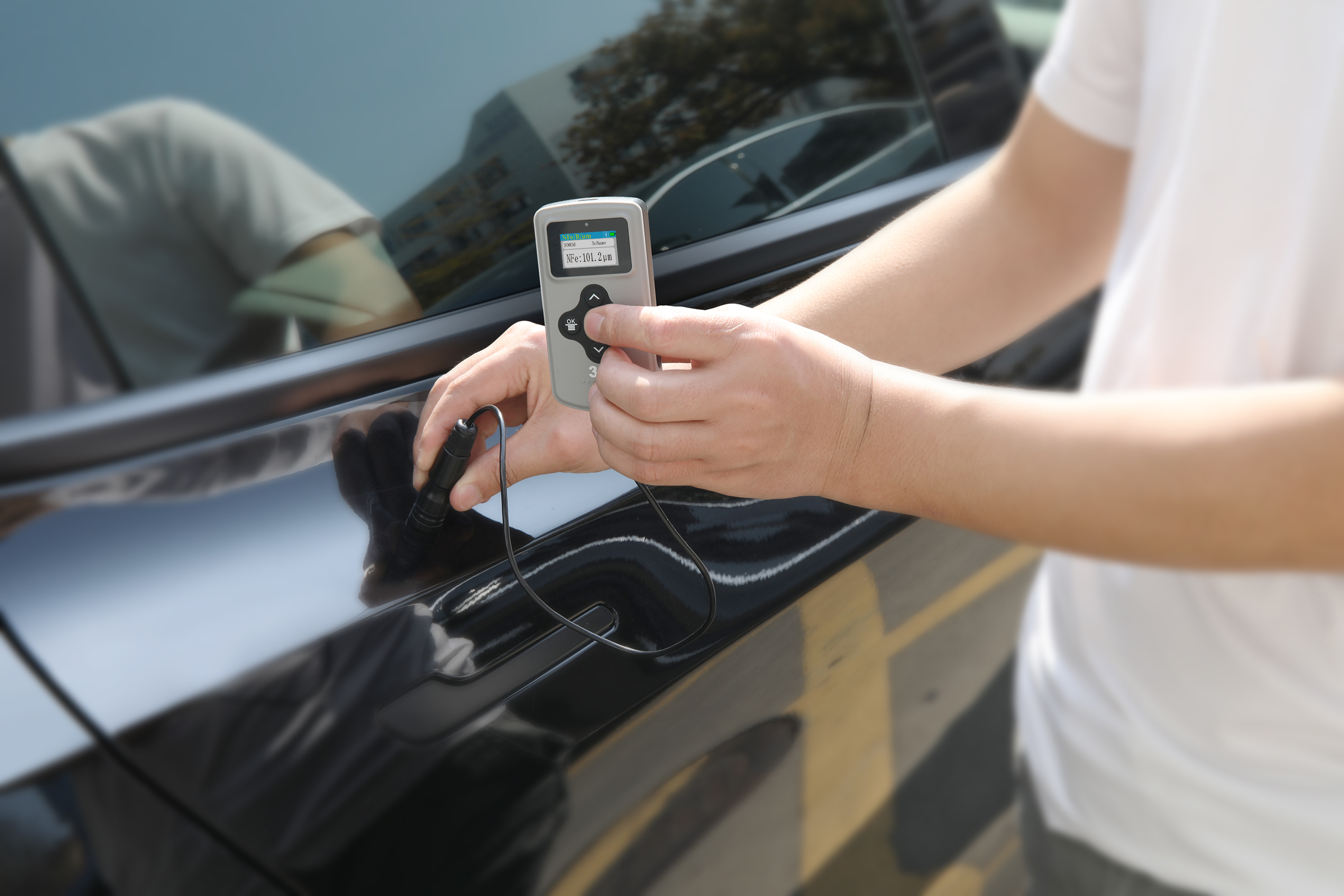

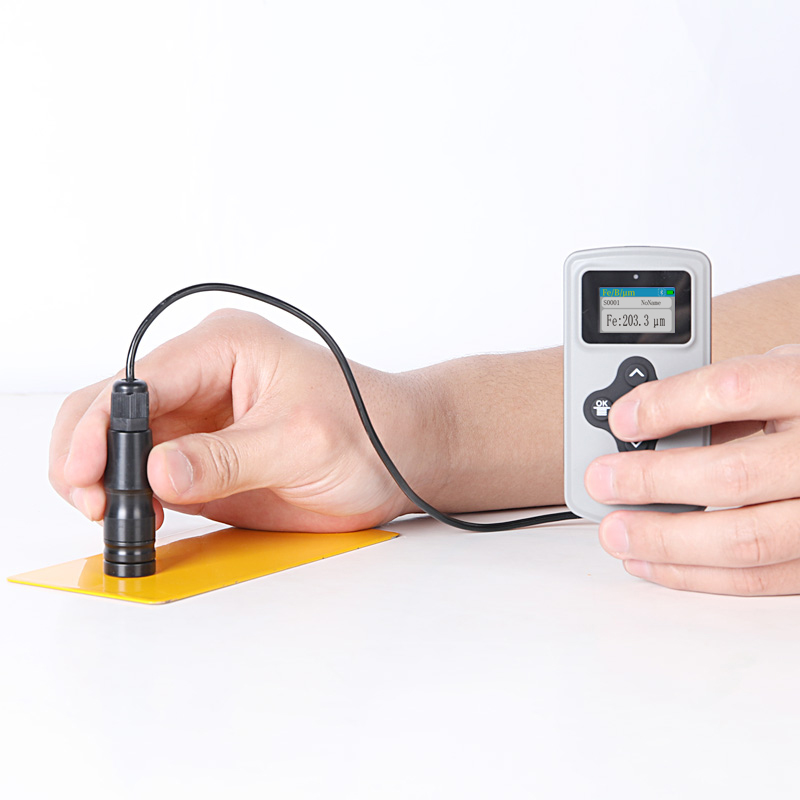

Gauge di misura dello spessore del rivestimento YT8500

Gauge di misura dello spessore del rivestimento YT8500 Istruzioni Manuale d'uso Gauge di misura dello spessore del rivestimento YT8500 Il PDF
Questo Gauge di misura dello spessore del rivestimento YT8500 Gli strumenti sono certificati con
certify
1 Anni di garanzia (Periodo di sostegno aggiuntivo di 3 anni)

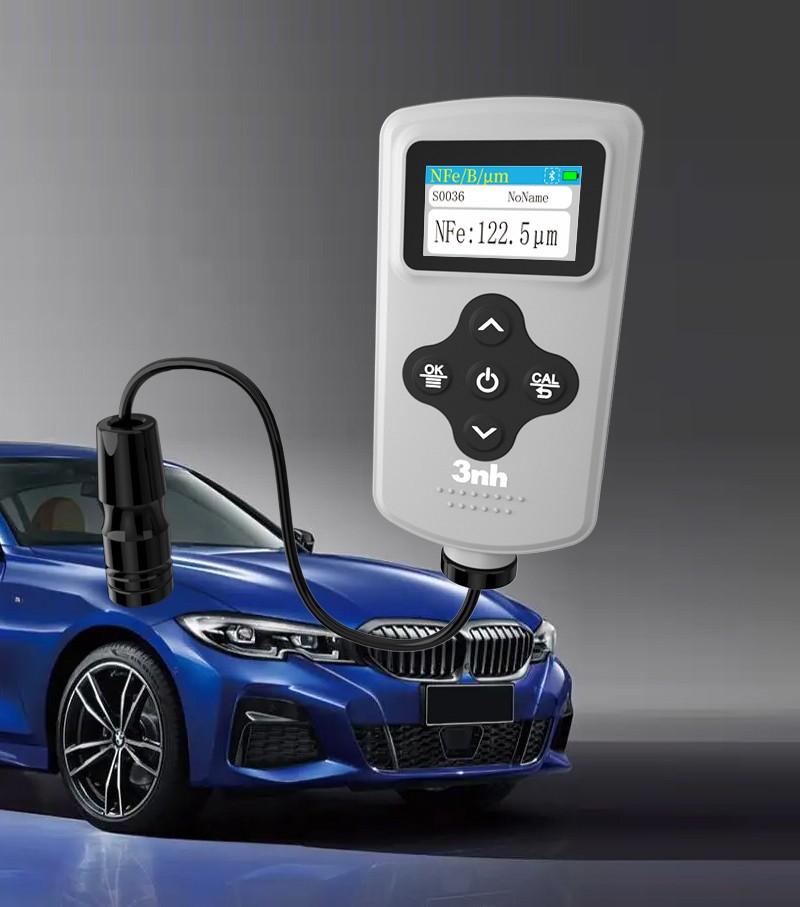

Professional version YT8500 for integrated dual-use coating thickness gauge

YT8500 is a standard integrated dual-use coating thickness gauge made by 3nh Company. It is a domestic coating thickness gauge with independent intellectual property right. It can quickly and accurately detect the coating thickness on metal substrate. YT8500 coating thickness measuring instrument fully conforms to ISO 2178, ISO 2360, GB/t 4956, GB/t 4957, ASTM B499 and other standards of magnetic method and Eddy current method testing principle.

Professional version YT8500 integrated dual-use coating thickness gauge has the advantages of accurate measurement, large measuring range, multi-calibration mode, multi-measurement mode, convenient positioning and powerful function, widely used in manufacturing, metal processing, chemical industry and other surface engineering testing fields, coating surface treatment industry is the basic equipment.

The Fe-based probe can detect the thickness of non-magnetic coatings on various magnetic substrates (such as steel) , such as paint, powder, porcelain, chromium, copper, zinc, etc..


NFe based probes detect the thickness of all insulating coatings, such as paint, powder, porcelain, etc. , applied to non-magnetic metal substrates such as aluminum, copper, brass, stainless steel, etc. .

Characteristics of standard Version YT8500

1、Large range5000μm

Maximum measurement thickness 5000 μm

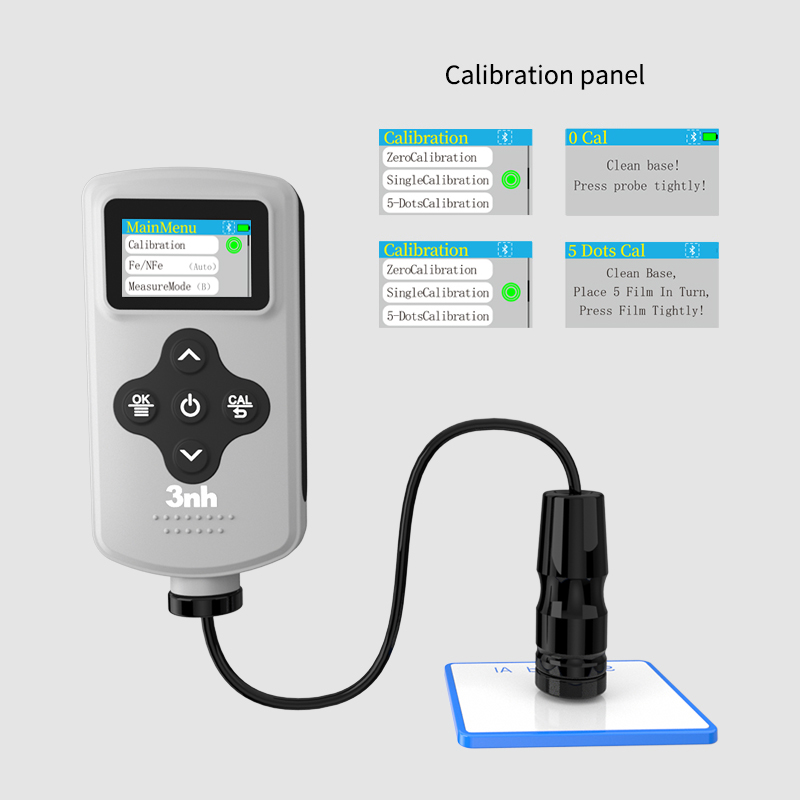

2、Support Zero Point, single point, five points

Support a variety of calibration methods, testing more convenient, to meet the needs of higher test accuracy


3、IPS pure color screen, smooth operation, large storage capacity

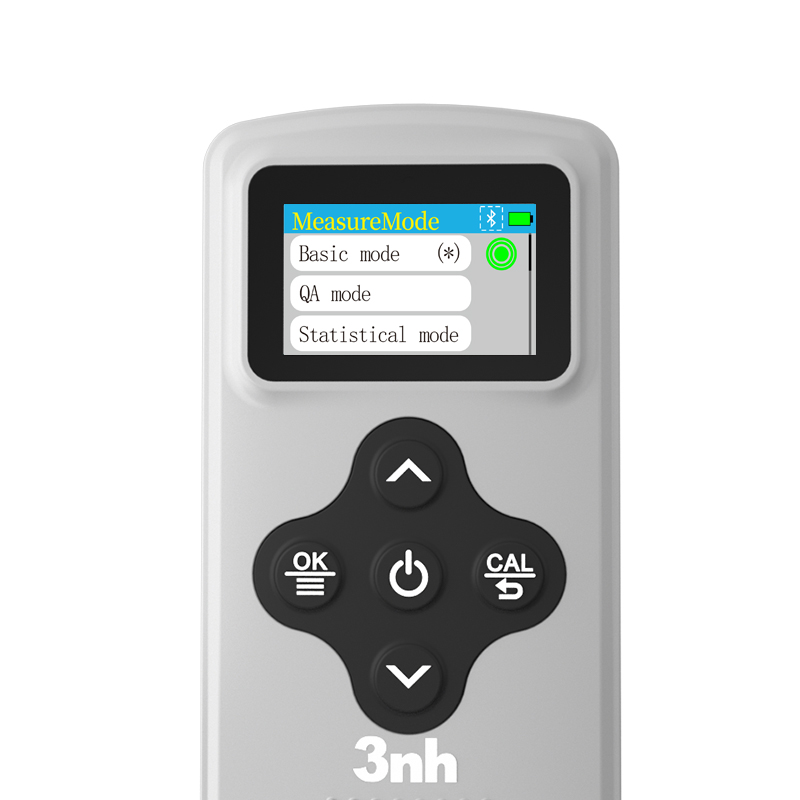

4、Measurement mode rich

Coating thickness tester YT8500 has basic mode, quality control mode, continuous mode, statistical mode for choice, to adapt to more test scenarios


5、Non-destructive testing, automatic identification of substrate type coating thickness Tester

YT8500 can automatically identify magnetic, non-magnetic substrate, non-destructive testing does not harm samples, enhance the detection speed。


6、The radius of convex plane and concave plane

Precisely measured at 5mm and 10mm respectively

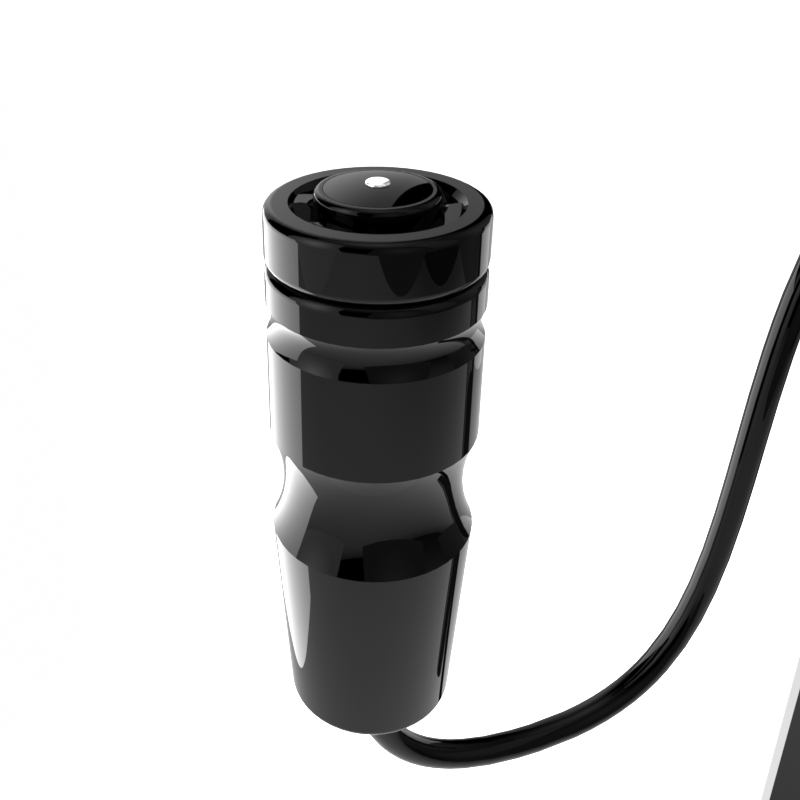

7、High sensitive probe

Independently developed high sensitive probe response speed, testing more accurate

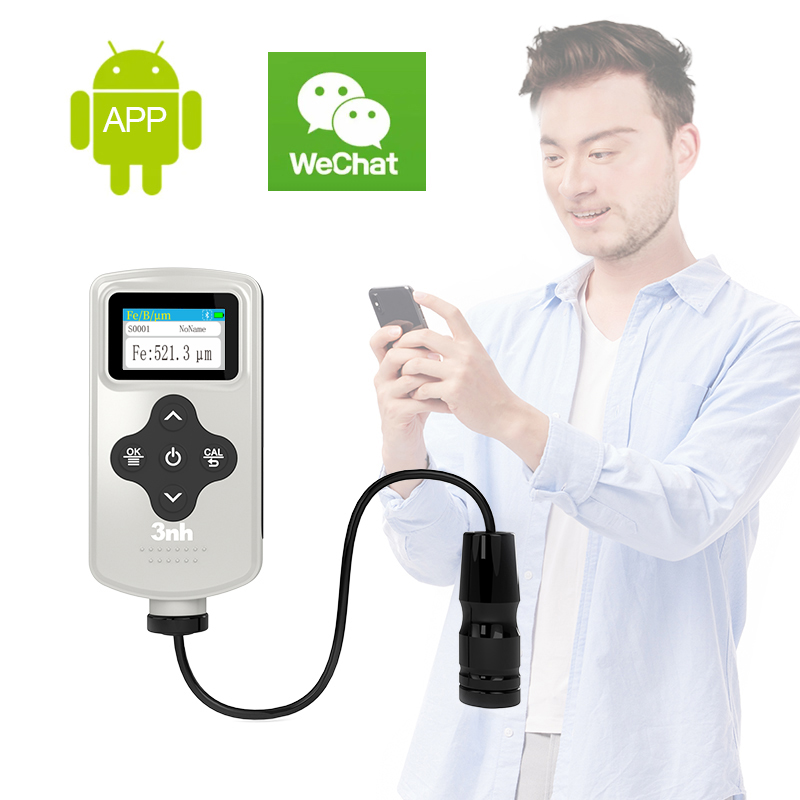

8、Support Bluetooth, more mobile APP extensions

Can be instant through Bluetooth measurement data transfer to the hands of the APP, the corresponding data editing and processing, output test report



Technical parameters of Standard Edition YT8500 integrated dual-use coating thickness gauge


ModelYT8500
Product NameStandard Edition YT8500 integrated dual-use coating thickness gauge

Characteristic
YT series coating thickness tester is made by 3NH company. It is a domestic coating thickness tester with independent intellectual property rights. It can quickly and accurately detect the coating thickness on metal substrate. The instrument fully conforms to ISO 2178, ISO 2360, GB/t 4956, GB/t 4957, ASTM B499 and other standards of magnetic and Eddy current testing principles.
It is widely used in surface engineering testing fields such as manufacturing, metal processing, chemical industry, and so on, because of its high precision, large measuring range, multi-calibration mode, multi-measurement mode, convenient positioning and powerful function, is The coating surface treatment profession basic equipment.
The Fe-based probe can detect the thickness of non-magnetic coatings on various magnetic substrates (such as steel) , such as paint, powder, porcelain, chromium, copper, zinc, etc. .
NFe based probes detect the thickness of all insulating coatings, such as paint, powder, porcelain, etc. , applied to non-magnetic metal substrates such as aluminum, copper, brass, stainless steel, etc. .
StandardASTM B499,ASTM D1400，ASTM D709;
ISO 2178,ISO 2360，ISO 2808;
GB/T 4956,JB/T 8393
MatrixFe/NFe
Probe typeIntegrated
Resolution0.1μm
Measurement range0~5000μm
Measurement accuracyzero calibration:±(3%H+1)μm；
Two point calibration:±(1~3%H+1.5)μm；
note: H is the sample thickness
Display screenIPS Full color screen, 1.14inch
InterfaceType C USB;Bluetooth 5.0；Button
Stored data3,500, massive storage via mobile APP
Battery capacityLithium-ion battery, fully charged, one-time continuous test 10000
Measurement modeBasic Model, quality control model, continuous model, statistical model
Minimum measurement sizeMagnetism：10×10mm；
Non-magnetic：10×10mm
Minimum measurement thicknessMagnetism：0.2mm；
Non-magnetic：0.05mm
Minimum curvatureconvex radius 5mm; concave radius 10mm
Unitμm/mil
Size107×50×20mm
Weight65g
Working temperature0~40ºC(10~90%RH without condensation)
Storage temperature -10~50ºC
Software SupportWeChat applet,HarmonyOS,Windows,Android,IOS

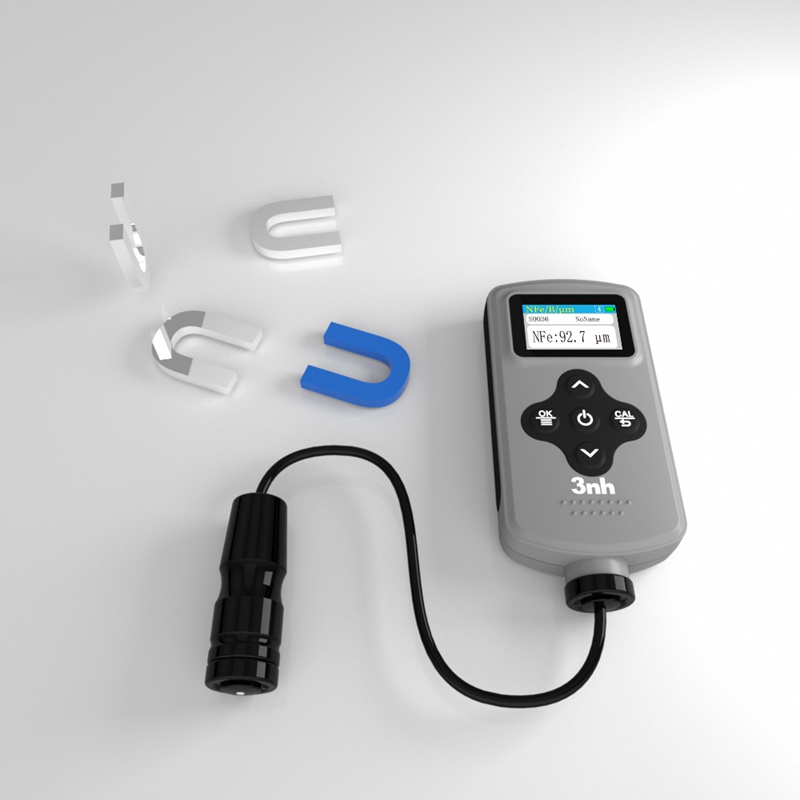

Standard accessories2 base (Aluminium Matrix and Iron Matrix), wrist strap,，Wipe cloth, USB cable, positioning film, calibration film
Optional accessoriesPrinter，5V-2A Power adapter
Note：Calibration film a set of 5(slightly different thickness) , technical parameters only for reference, to the actual sales of products shall prevail


I nostri stimati clienti

  • yazaki cliente
  • Toyota
  • alleati Nippon
  • Honda
  • industrie belrise
  • Gruppo SKF
  • cliente Ford
  • sistemi ferroviari titagarh

FAQ su  Gauge di spessore del rivestimento

Once ignited, the gauge will select the correct substrate mode. The probe should be placed flat on the coated surface. The thickness of the coating will show on the screen. Measurements should be taken on different areas of the surface to ensure accuracy.


A powder coated surface is most commonly measured for thickness post curing using a digital coating thickness gauge. This method is non-destructive, helps verify coverage uniformity and meets quality control standards. A powder comb gauge is used to estimate thickness for a pre-cured coating.

The automotive, aerospace, metal finishing, marine, construction, and manufacturing industries utilize and rely on coating thickness gauges the most. They ensure that coatings are within the expected criteria for functionality, safety, and durability.


A coating thickness gauge measures coating thickness. It measures coating thickness using three different principles: magnetic induction, eddy current, or ultrasonic. Depending on the coating type and the coating's substrate material, the appropriate principle is selected. For industrial and laboratory use, most of these units deliver accurate, non-invasive readings.


Of course! Many portable, battery operated, and lightweight coating thickness gauges are available for on-site and field inspections. They provide quick and accurate results and portable gauges are ideal for construction, automotive, and industrial environments.
