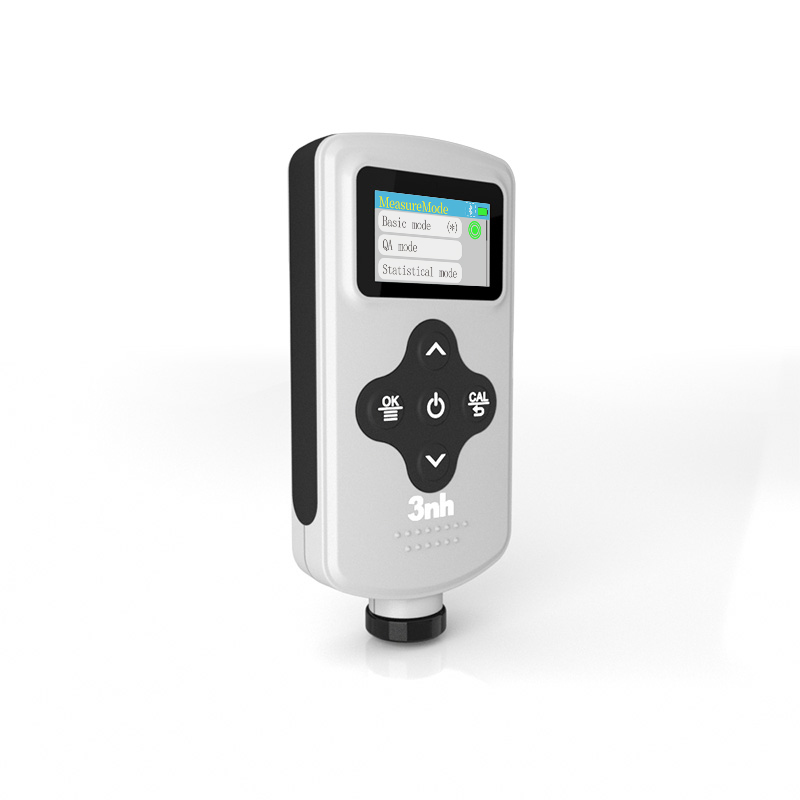

Gauge di spessore di rivestimento ferroso e non ferroso YT6300

Gauge di spessore di rivestimento ferroso e non ferroso YT6300 Istruzioni Manuale d'uso Gauge di spessore di rivestimento ferroso e non ferroso YT6300 Il PDF
Questo Gauge di spessore di rivestimento ferroso e non ferroso YT6300 Gli strumenti sono certificati con
certify
1 Anni di garanzia (Periodo di sostegno aggiuntivo di 3 anni)

Standard version YT6300 for Integrated dual-use coating thickness gauge


YT6300 is a standard integrated integrated dual-purpose coating thickness gauge made by 3nh Company. It is a domestic coating thickness gauge with independent intellectual property right. It can quickly and accurately detect the coating thickness on metal substrate. YT6300 coating thickness measuring instrument fully conforms to ISO 2178, ISO 2360, GB/t 4956, GB/t 4957, ASTM B499 and other standards of magnetic method and Eddy current method testing principle.

Standard version YT6300 integrated dual-purpose coating thickness gauge has the advantages of accurate measurement, large measuring range, multi-calibration mode, multi-measurement mode, convenient positioning and powerful function, widely used in manufacturing, metal processing, chemical industry and other surface engineering testing fields, coating surface treatment industry is the basic equipment.


The Fe-based probe can detect the thickness of non-magnetic coatings on various magnetic substrates (such as steel) , such as paint, powder, porcelain, chromium, copper, zinc, etc..

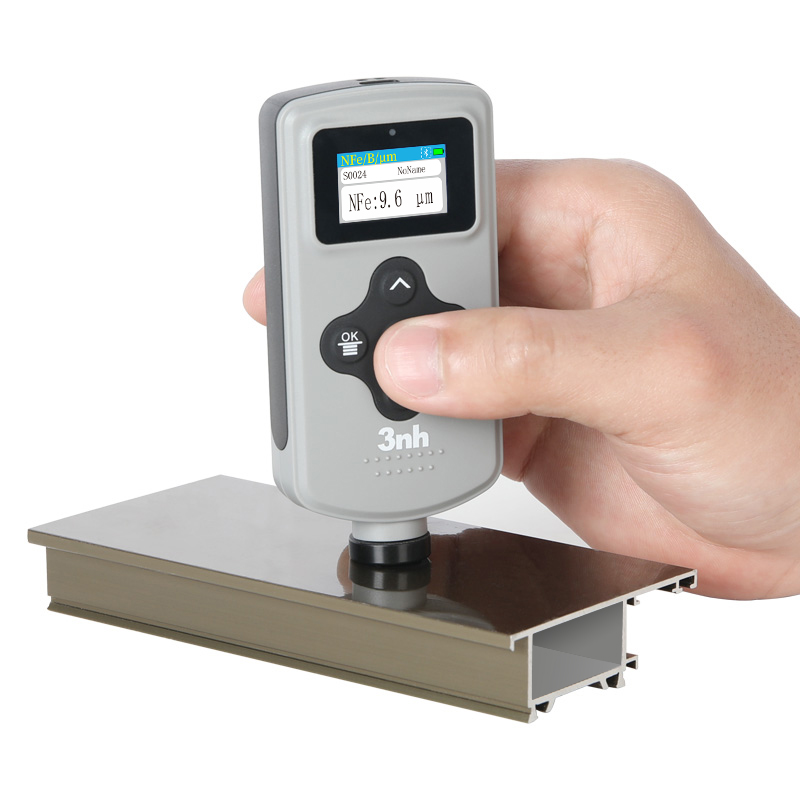

NFe based probes detect the thickness of all insulating coatings, such as paint, powder, porcelain, etc. , applied to non-magnetic metal substrates such as aluminum, copper, brass, stainless steel, etc. .

Characteristics of standard Version YT6300

1、Large range3000μm

Maximum measurement thickness 3,000 μm

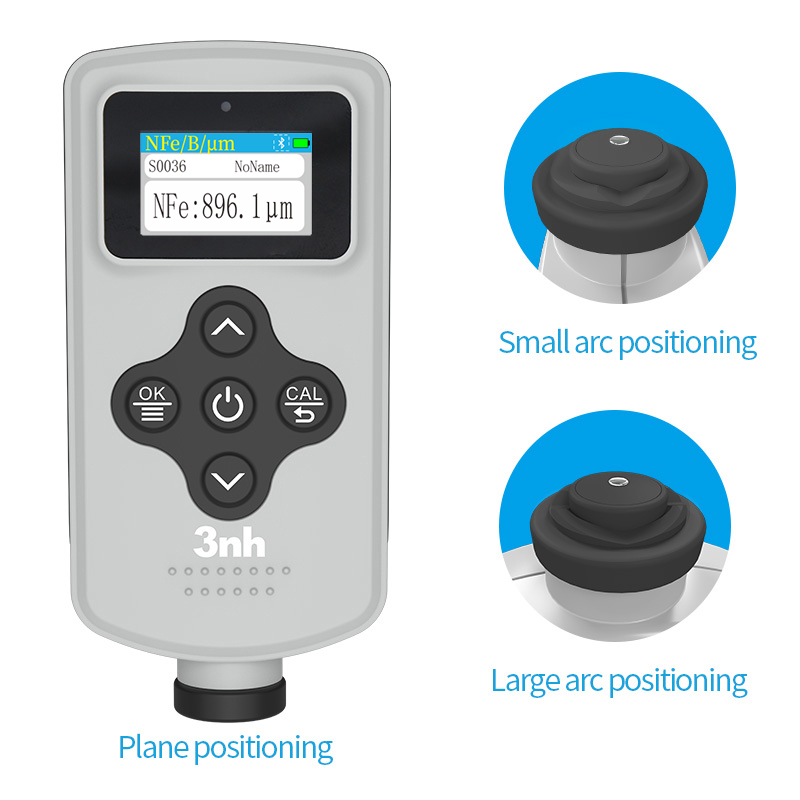

2. Multiple ways to locate

Standard multi-positioning plate, in large arc positioning, small arc positioning, plane positioning has more advantages, more accurate measurement.

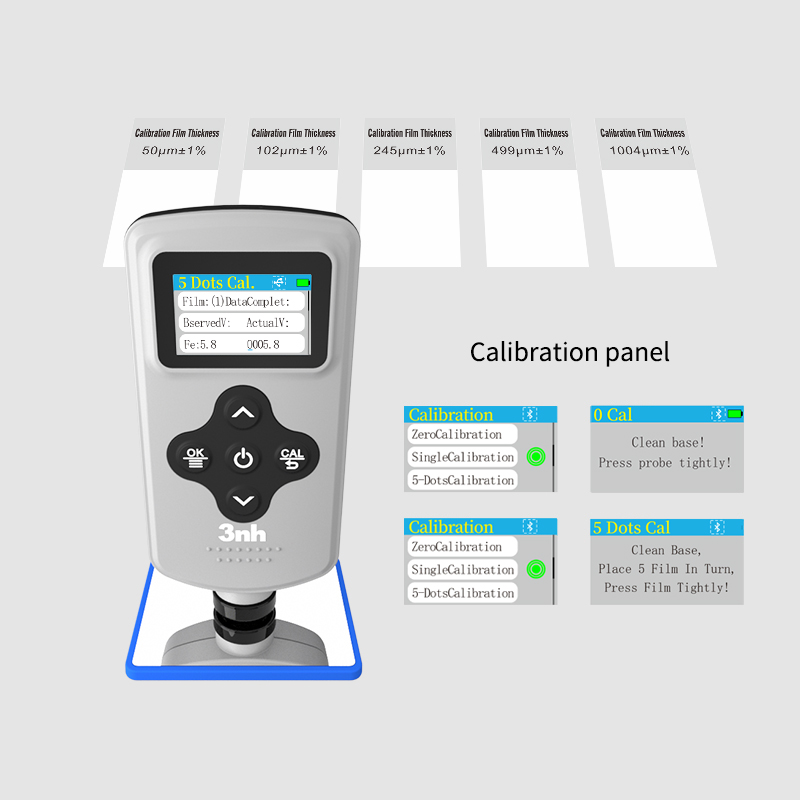

3. Support Zero Point, single point, five points

Support a variety of calibration methods, testing more convenient, to meet the needs of higher test accuracy

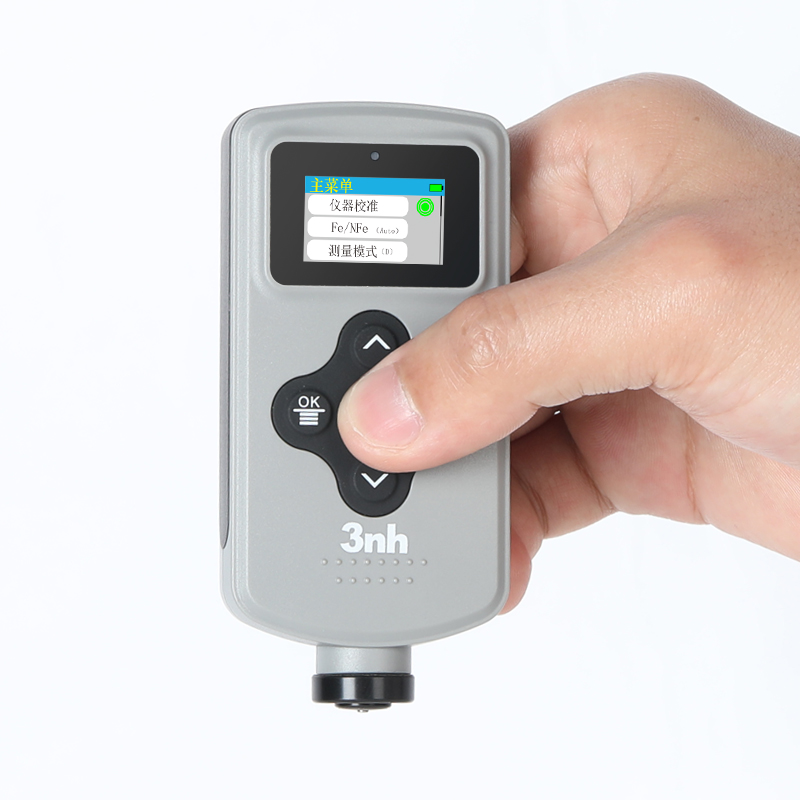

4. IPS pure color screen, smooth operation, large storage capacity

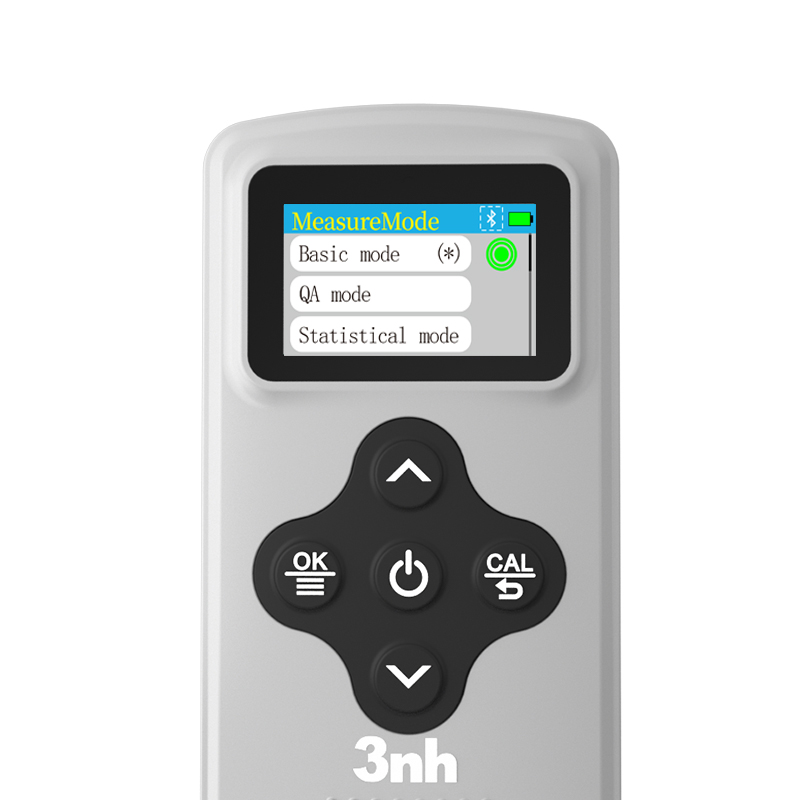

5.Measurement mode rich

Coating thickness tester YT6300 has basic mode, quality control mode, continuous mode, statistical mode for choice, to adapt to more test scenarios


6.Non-destructive testing, automatic identification of substrate type coating thickness Tester

YT6300 can automatically identify magnetic, non-magnetic substrate, non-destructive testing does not harm samples, enhance the detection speed


7.The radius of convex plane and concave plane

Precisely measured at 5mm and 10mm respectively

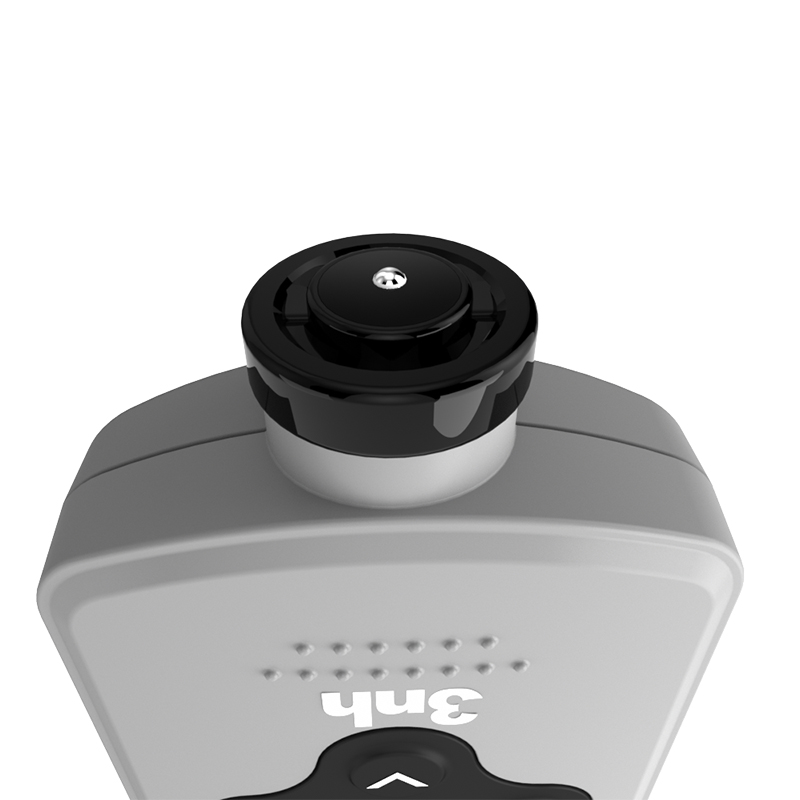

8.High sensitive probe

Independently developed high sensitive probe response speed, testing more accurate

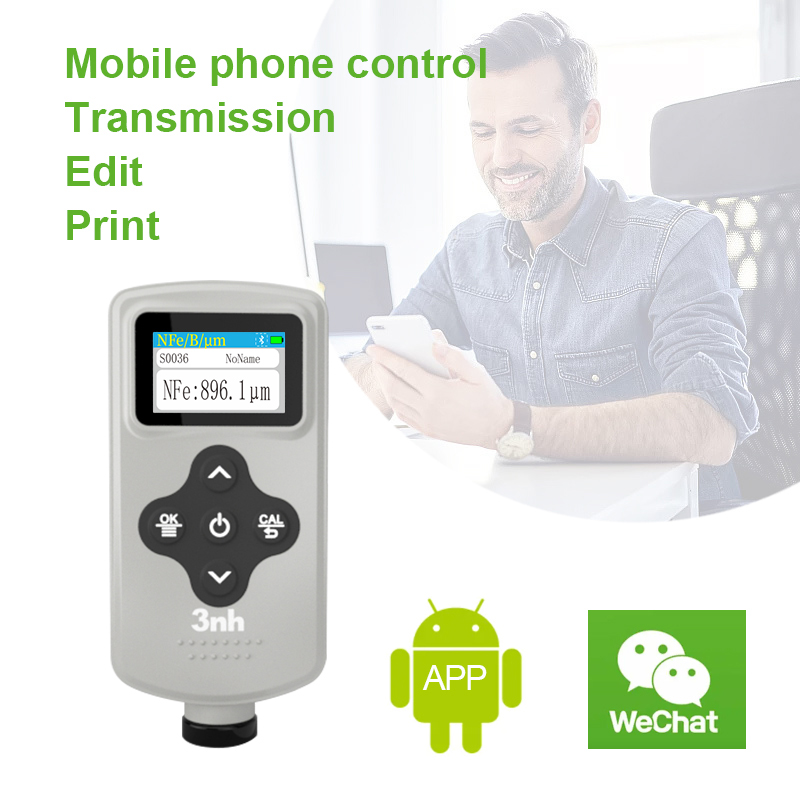

9.Support Bluetooth, more mobile APP extensions

Can be instant through Bluetooth measurement data transfer to the hands of the APP, the corresponding data editing and processing, output test report



Technical parameters of Standard Edition YT6300 integrated dual-purpose coating thickness gauge



ModelYT6300
Product NameStandard Edition YT6300 for integrated dual-purpose coating thickness gauge

Characteristic
YT series coating thickness tester is made by 3NH company. It is a domestic coating thickness tester with independent intellectual property rights. It can quickly and accurately detect the coating thickness on metal substrate. The instrument fully conforms to ISO 2178, ISO 2360, GB/t 4956, GB/t 4957, ASTM B499 and other standards of magnetic and Eddy current testing principles.
It is widely used in surface engineering testing fields such as manufacturing, metal processing, chemical industry, and so on, because of its high precision, large measuring range, multi-calibration mode, multi-measurement mode, convenient positioning and powerful function, is The coating surface treatment profession basic equipment.
The Fe-based probe can detect the thickness of non-magnetic coatings on various magnetic substrates (such as steel) , such as paint, powder, porcelain, chromium, copper, zinc, etc. .
NFe based probes detect the thickness of all insulating coatings, such as paint, powder, porcelain, etc. , applied to non-magnetic metal substrates such as aluminum, copper, brass, stainless steel, etc. .
StandardASTM B499,ASTM D1400，ASTM D709;
ISO 2178,ISO 2360，ISO 2808;
GB/T 4956,JB/T 8393
MatrixFe/NFe
Probe typeIntegrated
Positioning structureMultiple localizer
Resolution0.1μm
Measurement range0~3000μm
Measurement accuracyzero calibration:±(3%H+1)μm；
Two point calibration:±(1~3%H+1.5)μm；
note: H is the sample thickness
Display screenIPS Full color screen, 1.14inch
InterfaceType C USB;Bluetooth 5.0；Button
Stored data2,000, massive storage via mobile APP
Battery capacityLithium-ion battery, fully charged, one-time continuous test 10000
Measurement modeBasic Model, quality control model, continuous model, statistical model
Minimum measurement sizeMagnetism：10×10mm；
Non-magnetic：10×10mm
Minimum measurement thicknessMagnetism：0.2mm；
Non-magnetic：0.05mm
Minimum curvatureconvex radius 5mm; concave radius 10mm
Unitμm/mil
Size107×50×20mm
Weight65g
Working temperature0~40ºC(10~90%RH without condensation)
Storage temperature -10~50ºC
Software SupportWeChat applet,HarmonyOS,Windows,Android,IOS
Standard accessories2 base (Aluminium Matrix and Iron Matrix), wrist strap,，Wipe cloth, USB cable, positioning film, calibration film
Optional accessoriesPrinter，5V-2A Power adapter
Note：Calibration film a set of 5(slightly different thickness) , technical parameters only for reference, to the actual sales of products shall prevail


I nostri stimati clienti

  • alleati Nippon
  • Honda
  • industrie belrise
  • cliente adiente
  • Gruppo JSW
  • Gruppo SKF
  • Toyota
  • cliente Ford

FAQ su  Gauge di spessore del rivestimento

Measuring zinc coating thickness is most commonly using magnetic induction. The gauge measures how far the magnetic probes are to the metal base under the zinc. This is the most reliable way to measure the thickness and the preservation of the galvanization.

The automotive, aerospace, metal finishing, marine, construction, and manufacturing industries utilize and rely on coating thickness gauges the most. They ensure that coatings are within the expected criteria for functionality, safety, and durability.


Compared to an analog model, digital gauges not only provide more accuracy, but also allow for greater repeatability and are easier to work with. Advanced digital gauges allow for features such as data storage and automatic calibration and statistical analysis. For these reasons, digital gauges are the preferred choice for professional applications.


A magnetic induction gauge measures galvanized coatings by sensing the zinc coating on steel and iron. The measurement tells how thick the protective coating is. This is done to ensure the prevention of rusting.


Consistency in calibration is important to account for imbalances arising from wear and tear of the probe, probe pressure, variation from the environment, and fluctuations in daily usage. This is also necessary to maintain the best quality to various international standards.
