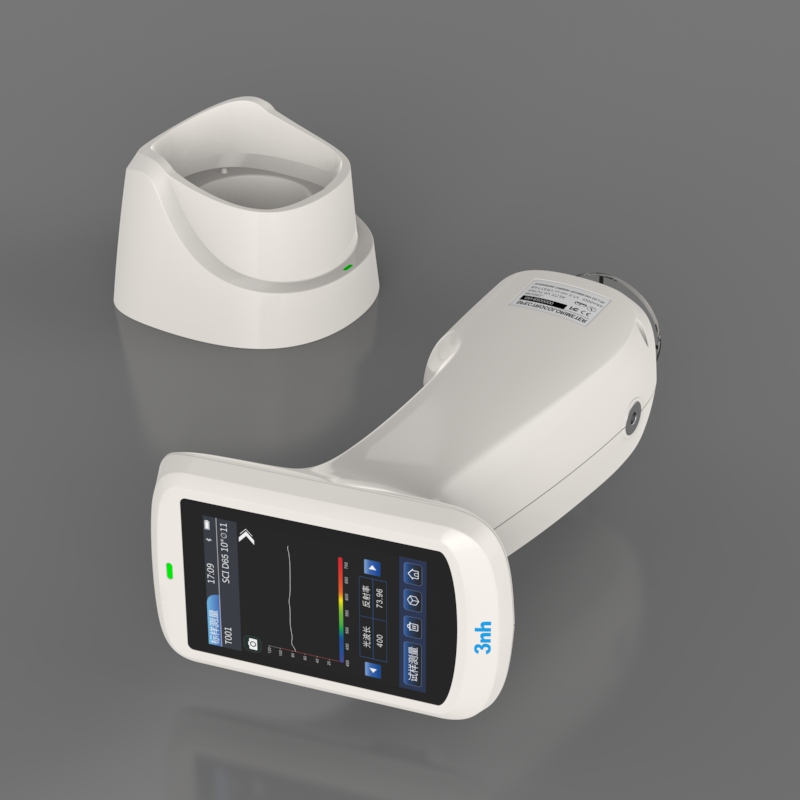

Nuovo Nano Spettrocolorimetro KS-520

Nano scale spectral color detection

The KS-520 is a new portable colorimeter newly developed by 3nh. It combines the features of a portable color difference meter and a high-precision spectrophotometer, adopting patented nanoscale spectrophotometric technology. It can measure the Lab* values of objects and provide parameters such as spectral values, chromaticity values, color difference values, pass/fail status, and color deviation to evaluate the surface color consistency of objects.


Key Highlights

  • D/8 (diffuse illumination, receiving in 8 direction), SC/SCE

  • 12 full specification calibers (including 1 * 3mm micro models), covering all sizes from standard samples to precision micro parts.

  • UV light source+full spectrum LED, from conventional materials to fluorescent samples

  • Flagship level quality control: non-contact automatic calibration, combined with customized color management process

  • Guaranteed Grade 1 metrology certification

  • Reliable repeatability (ΔEab ≤0.025) and **inter-instrument agreement (ΔEab ≤0.3)


Nuovo Nano Spettrocolorimetro KS-520 Istruzioni Manuale d'uso Nuovo Nano Spettrocolorimetro KS-520 Il PDF
Questo KS-520 Gli strumenti sono certificati con
certify
1 Anni di garanzia (Periodo di sostegno aggiuntivo di 3 anni)

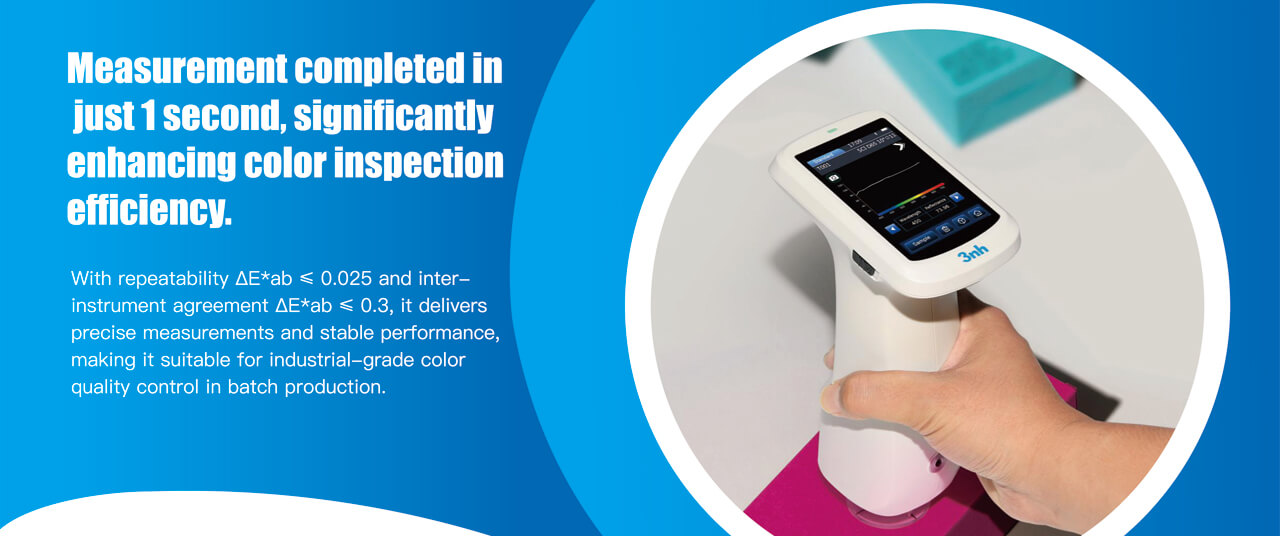

color_inspection

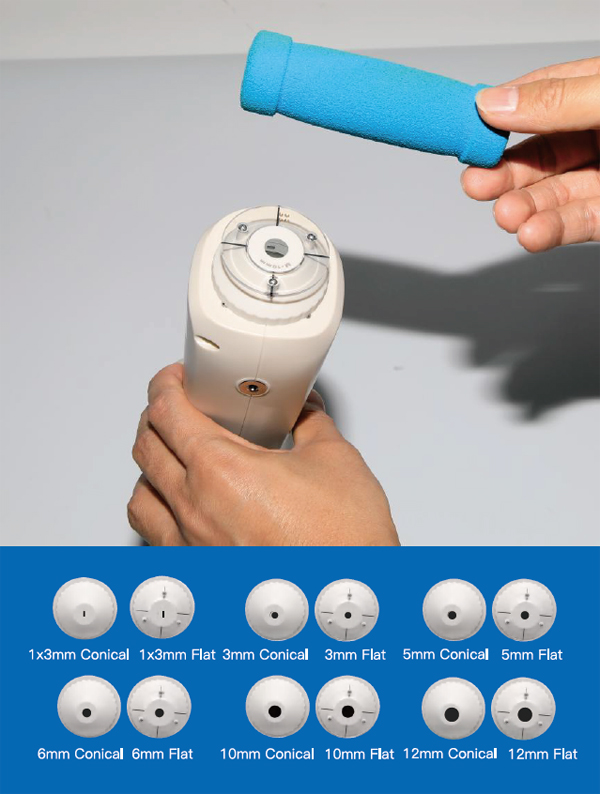

Versatile form factor adaptation


one Full form factor compatibility

Twelve full-size nozzle sizes (including a 1*3mm micro version) are available, specifically including 3mm platform + 3mm tip + 5mm platform + 5mm tip + 6mm platform + 6mm tip + 10mm platform + 10mm tip + 11mm platform + 11mm tip + 1*3mm platform + 1*3 tip, covering samples from standard to precision micro parts, and samples of different shapes such as flat, curved, and uneven surfaces.

2. Compatible with all types of samples

With a UV light source and full-spectrum LED, it can accurately measure conventional materials and easily handle fluorescent samples, making it more widely applicable.

three Multiple color measurement spaces and multiple observation light sources

It provides CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, βxy, and DIN Lab99 color spaces, as well as multiple observation light sources including D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30), U35, NBF, ID50, and ID65, which can meet the special measurement needs under different measurement conditions.




Precise Measurement

1. High-precision measurement performance, accurate and stable data.

Repeatability ΔEab≤0.025, inter-batch difference ΔEab≤0.3 , to ensure color consistency in batch production.

By adopting a dual-optical-path system design, the system effectively reduces measurement interference and further improves stability and repeatability by monitoring the energy fluctuations of the light source.

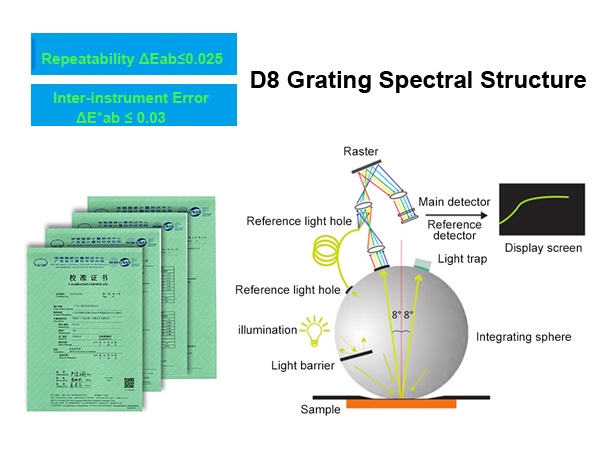

2. Internationally recognized D/8 SCI/SCE synthesis technology

Following D/8 lighting observation conditions and SCI/SCE synthesis technology, it covers the color management needs of industries such as coatings, textiles, and plastics, and complies with international standards such as CIE, ISO, and ASTM.

3. Authoritative metrological certification

To ensure Level 1 metrological certification, each instrument undergoes authoritative verification before leaving the factory, and measurement data is traceable to the National Institute of Metrology, guaranteeing the authority of test results.

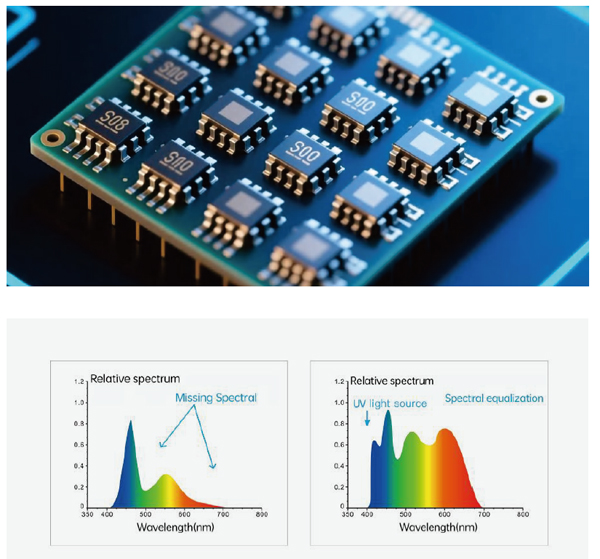

Flagship-level Hardware and Quality Control

1. Core optical components

Silicon photodiode array:

The dual-row 18-group silicon photodiode array features a large-area design that is unsaturated under strong light and highly sensitive to weak light. Its spectral response range covers 400-700nm with 10nm intervals, and its reflectivity measurement range is 0-200%, accurately capturing visible light information.

Nanoscale integrated spectral devices:

It has nanometer-level spectral splitting capability, which can accurately separate light of different wavelengths and effectively ensure the accuracy of data in each band.

Full-band equalized LED light source + UV light source:

The instrument's illumination source covers the full spectrum of 400-700nm, providing ample spectral distribution within the visible light range and avoiding the spectral deficiencies of white LEDs. It is also equipped with a UV light source, allowing for easy measurement of fluorescent materials and ensuring the accuracy of the instrument's results.

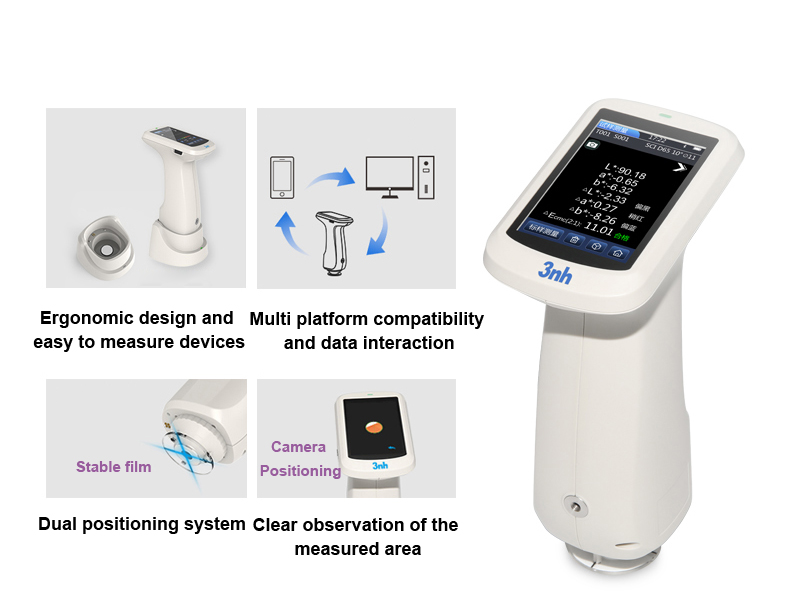

Convenient Operation and Intelligent Interaction

1. Ergonomic design and easy-to-test device

Based on ergonomic design, the large touchscreen, combined with optimized grip and measurement buttons, is suitable for different usage habits.

2. Precise positioning and calibration

Stabilizer + camera viewfinder positioning allows for clear observation of the measured area.

The dual positioning system of stabilizer and camera can accurately determine whether the measured part of the object is the center of the target by real-time viewing through the camera, accurately locate the target area and reduce measurement errors.

Non-contact automatic whiteboard verification

Supports non-contact automatic whiteboard calibration. Professional-grade standard whiteboards have a reflectivity R%≥95%, good surface uniformity, high stability, and can obtain repeatable and accurate data.

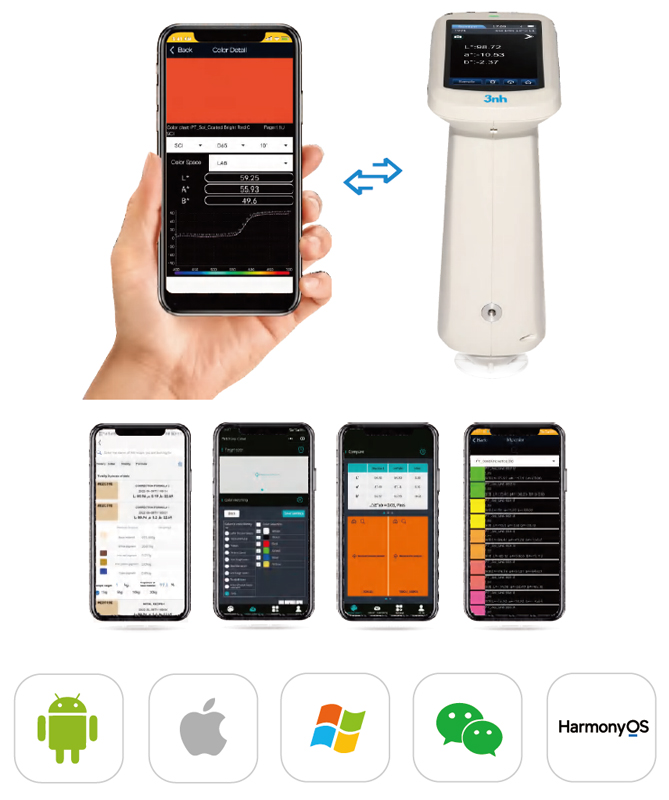

3. Multi-platform compatibility and data interaction

It supports multiple systems including Android, iOS, Windows, and HarmonyOS. Users can operate directly through mobile apps, WeChat mini programs, or computers to achieve cross-device data synchronization.




Powerful Expansion and Collaborative Management


1. Cloud storage and collaborative management

It supports simultaneous storage of massive amounts of color data (up to 500 standard samples) via APP and mini-program, establishing a private cloud database. No need to carry color cards, you can share with partners anytime, anywhere.

2. Professional color management software

The accompanying quality management software supports multiple systems including Android , iOS, Windows, WeChat Mini Program, HarmonyOS, and the color matching cloud platform. This software can generate test reports, compare color difference data, and customize color management processes to meet industrial-grade quality control needs.

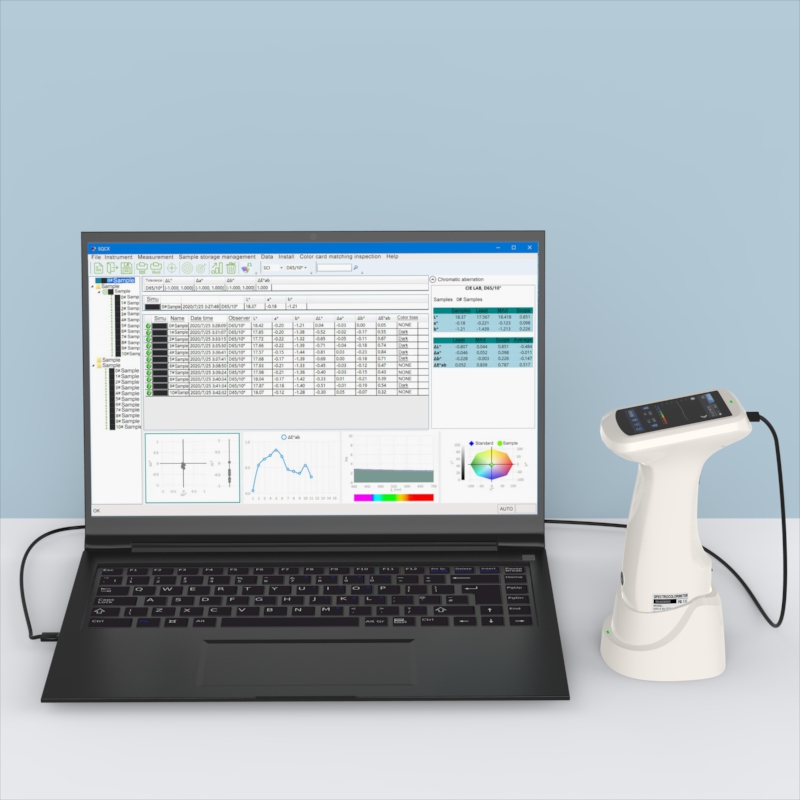

Computer-Side QualityManagement Software

SQCX Quality Management Softwarepossesses powerful data processingand analytical capabilities. It cancontrol the instrument formeasurement, modify instrumentconfigurations, and operate oninstrument data. Simultaneously, itsignificantly expands instrumentfunctionalities, enabling complexdata management, color detection,report generation, and more, makingit an effcient tool for color qualitymanagement.


Color Matching Cloud -Grout Color Matching Software

Color Matching Cloud - Grout ColorMatching Software is a task-orientedcolor formulation software designedfor quick one-click color matching withmultiple formula options. It featuresintelligent formula correction,automatic calculation of correctionformulas, and seamless integrationwith third-party systems andequipment. Highly effcient, itsignifcantly saves labor, material, andtime costs.

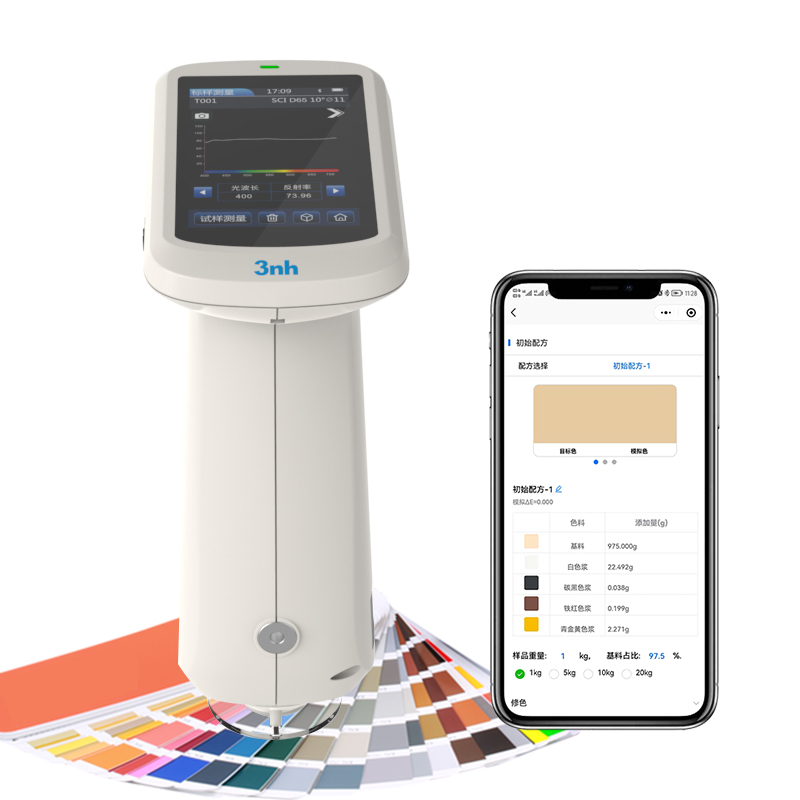

MOBCC ColorMeasurement App Software

Color Matching Cloud -MOBCCColor Matching Softwaresynchronizes with massive storagevia the app, enabling rapid colormeasurement, color data reviewand retrieval, analysis, andcomparison. The app allows usersto build a private color database inthe cloud and find the closest colormatches across multiple electroniccolor Chard sets.

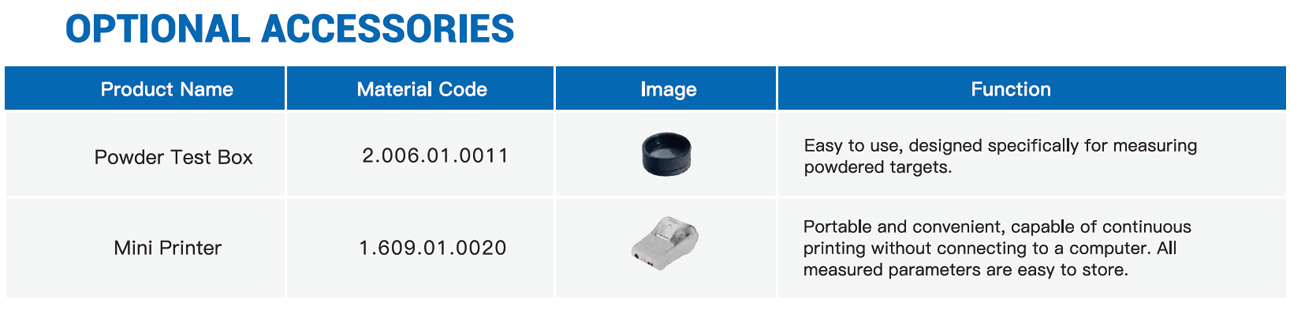

ks520_OPTIONAL_ACCESSORIES

KS520 Industry Applications

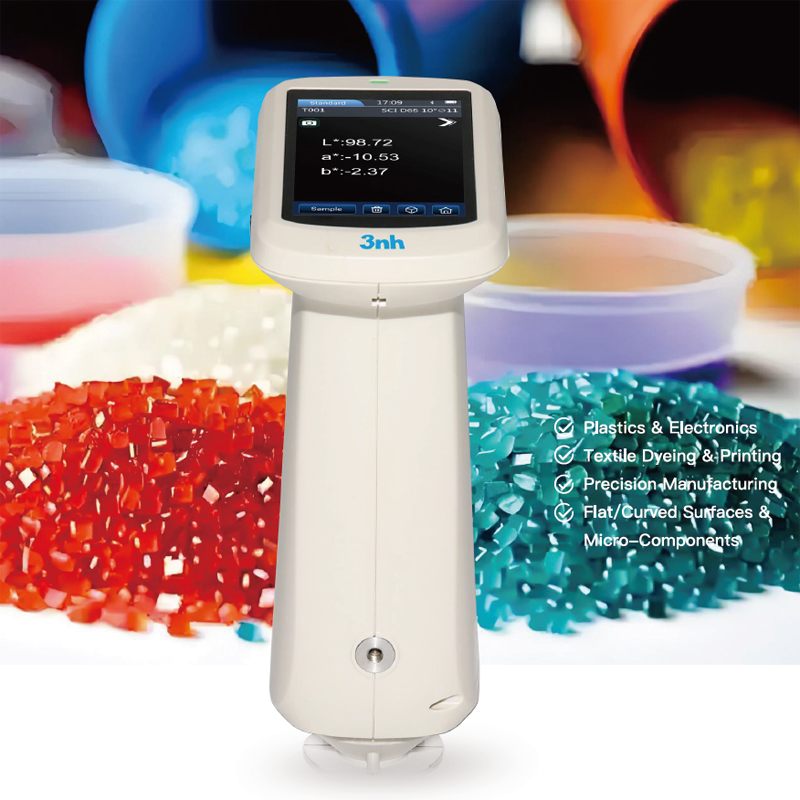

The KS520 Spectrocolorimeter instrument is widely used for color quality control across industries. It delivers accurate and stable color measurement for plastics, coatings, printing, textiles, leather, ceramics and building materials. Ideal for on-site inspection and batch comparison, it ensures color consistency in production, reduces rejects, and supports reliable data recording and analysis. Its portable design and user-friendly operation make it suitable for factories, laboratories and incoming material inspection, effectively improving product appearance quality and standardizing color management.

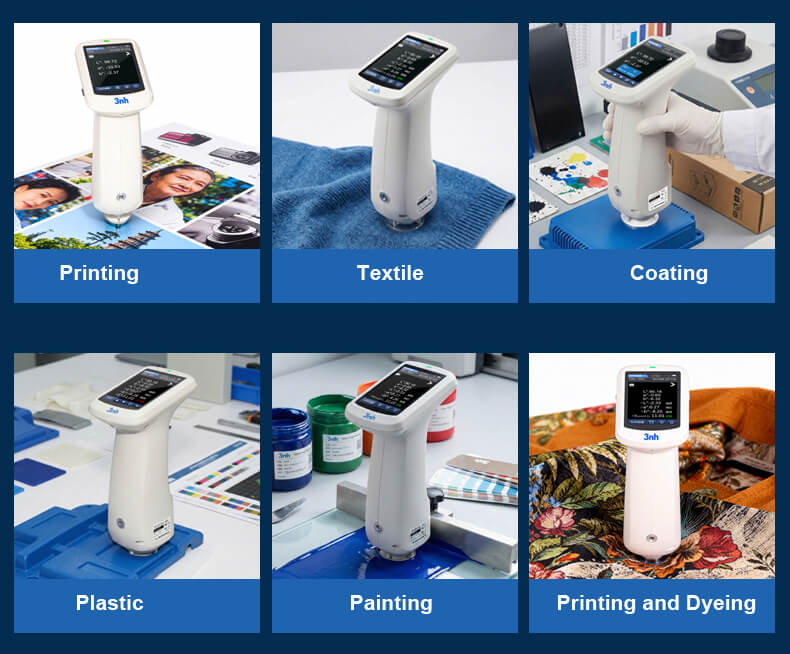

Widely used for color difference quality control in various industries


PRODUCT SPECIFICATIONS

Optical

Geometry

D/8 (diffuse illumination, receiving in 8 direction), SC/SCE (including speculareflection light/removing specular reflection light), conforming to standards ClE No.15GB/T3978,GB 2893,GB/T18833, ISO 724-1,ASTM E164, DIN 5033 TEIL 7.

Characteristic

Silicon photodiode array (double row 18 groups) is used for color difference quality control inplastic electronics, paint ink, textile and garment printing and dyeing, printing,ceramics and other industries; UV can be used for fluorescence sample measurement.

Light Source

Combined full-spectrum LED light source, UV light source

Integrating sphere size

Φ40mm

Splitting mode

Nano-integrated spectral device

Sensor

Silicon photodiode array (double row 18 groups)

Wavelength Range

400-700nm

Measuring Aperture

Twelve Apertures:
3mm Flat + 3mm Conical
5mm Flat + 5mm Conical
6mm Flat + 6mm Conical
10mm Flat + 10mm Conical
11mm Flat + 11mm Conical
1×3mm Flat + 1×3mm Conical

Specular Component

SCI/SCE

Color Space

CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab

Color difference formula

ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, ΔE(Hunter)

Other chromaticity indexes

Spectral Reflectance,
WI (ASTM E313, CIE/ISO, AATCC, Hunter, Taube, Berger, Stensby),
YI (ASTM D1925, ASTM 313),
Metamerism Index MI,
Staining Fastness,
Color Change Fastness,
Strength,
Hiding Power,
555 Hue Classification,
Munsell (C/2),
Blackness (My, dM),
Color Density CMYK,
Tint（Some functions are realized through the computer）

Observer Angle

2°/10°

Illuminant

D65,A,B,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30),U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2（Some functions are realized through the computer）

Displayed Data

Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset

Measuring time

About 1s

Repeatability

Spectral reflectance: MAV/SCI, Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%)
Chromaticity value: MAV/SCI, within ΔE*ab 0.025 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument Error

MAV/SCI, Within ΔE*ab 0.3
(Average for 12 BCRA Series II color tiles)

Display accuracy

0.01

Measured Reflectance Range

0-200%

Reflectivity resolution

0.01%

Measurement Mode

Single measurement, average measurement (2~99 times)

Locating mode

Camera Locating,stabilizer cross position

Whiteboard Verification Mode

Non-contact automatic whiteboard calibration

Dimension

120*75*207mm

Weight

About 367g (excluding calibration base)

Battery

Lithium battery, 3.7V, 3200mAh, 8000 times in 8 hours.

Illuminant Life Span

More than 1.2 million measurements in 10 years

Displayed Data

TFT true color 3.5inch, capacitive touch screen

Data Port

USB, bluetooth

Data Storage

There are 500 standard samples and 15,000 samples (one piece of data can include SCI/SCE at the same time), and APP/PC is stored in mass

Software Support

Andriod,IOS,Windows, wechat applet, HarmonyOS

language

Simplified Chinese, English, traditional Chinese

Operating Environment

0~40℃, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment

 -20~50℃, 0~85%RH (no condensing)

Standard Accessory

Power adapter, data cable, instruction manual, quality management software (downloaded from official website), white calibration box, protective cover, wristband, measuring aperture.

Optional Accessory

Micro Printer, Powder Test Box

Note:

1. Technical parameters are for reference only, subject to the actual products sold.

2. lt is subject to change without prior notice.


I nostri stimati clienti

  • DTU Technical Danimarca Università
  • Flinders
  • Università del Mississippi
  • Università del Connecticut
  • UPORTO
  • infieone
  • laboratorio di chimica batterica
  • Toronto

FAQ su KS-520 Spectrocolorimeter

Un calorimetro è utilizzato per misurare il calore guadagnato o perso durante una reazione chimica o fisica. Un campione viene prelevato in un contenitore isolato e viene misurato un cambiamento di temperatura. Questo aiuta a calcolare le alterazioni nell'energia con l'equazione Q = mcΔT, dove Q è calore.


A colorimeter is sufficient when measuring similar materials or batches with stable conditions. Suitable for fast, low-cost color checks where high precision is not required. Quick quality control in plastics, paint batch consistency, food color grading (e.g., fruit ripeness), and basic printing checks.

A spectrophotometer is recommended when you need professional, maximum color accuracy or when testing materials with variable surfaces – such as glossy or textured samples. Like textile dye formulation, cosmetic shade matching, medical device color calibration, high-end printing (e.g., packaging for luxury goods), and material spectral research. learn more Understanding Spectrophotometric Parameter Measurement


Un colorimetro misura la quantità di luce e la lunghezza d'onda assorbita da una soluzione. È un segno che i composti colorati sono presenti e il livello della loro concentrazione. È applicato in laboratorio e nell'industria per controllare le concentrazioni di sostanze chimiche, il colore dei prodotti e la purezza.


L*a*b* è uno spazio di colori L*a*b*. L* è una misura di leggerezza (come 0 = nero, 100 = bianco), a* indica l'asse verde a rosso e b* indica l'asse blu a giallo. È anche comune nella misurazione del colore in termini di precisione e affidabilità.


Un colorimetro invia la luce attraverso una soluzione e misura la quantità assorbita. Calcola l'assorbinza confrontando l'intensità della luce prima e dopo il passaggio. Maggiore è la concentrazione del colore, maggiore è l'assorbimento della luce. È inoltre possibile quantificare il colore della soluzione.
