Spettrofotometri e colorimetri in linea: controllo del colore in tempo reale per la produzione moderna

Industries such as plastics, coatings, textiles, printing, packaging, and even food are among the industries that face competition and must maintain consistent color quality. Each customer has the expectation of consistent color quality across each batch of product, and even the slightest color difference may cause complaints, rejection of the product, or costly product waste. For high-speed production, it is clear that the old traditional offline quality checks must be improved upon.

One way to improve the process is to integrate inline spectrophotometers and inline colorimeters. They monitor color in real time and enable snap adjustments to prevent corrective actions that may prove large scale and below acceptable color quality for any production batch.

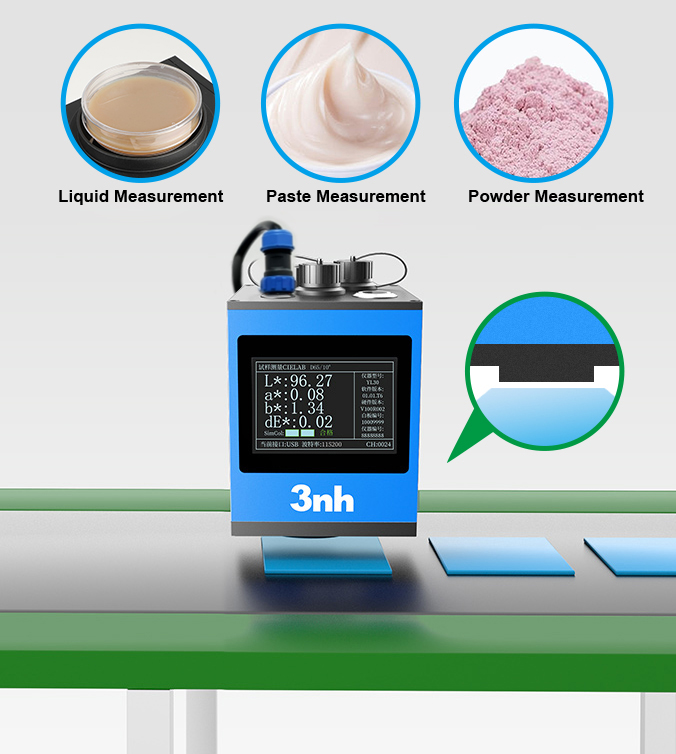

What is an Inline Spectrophotometer?

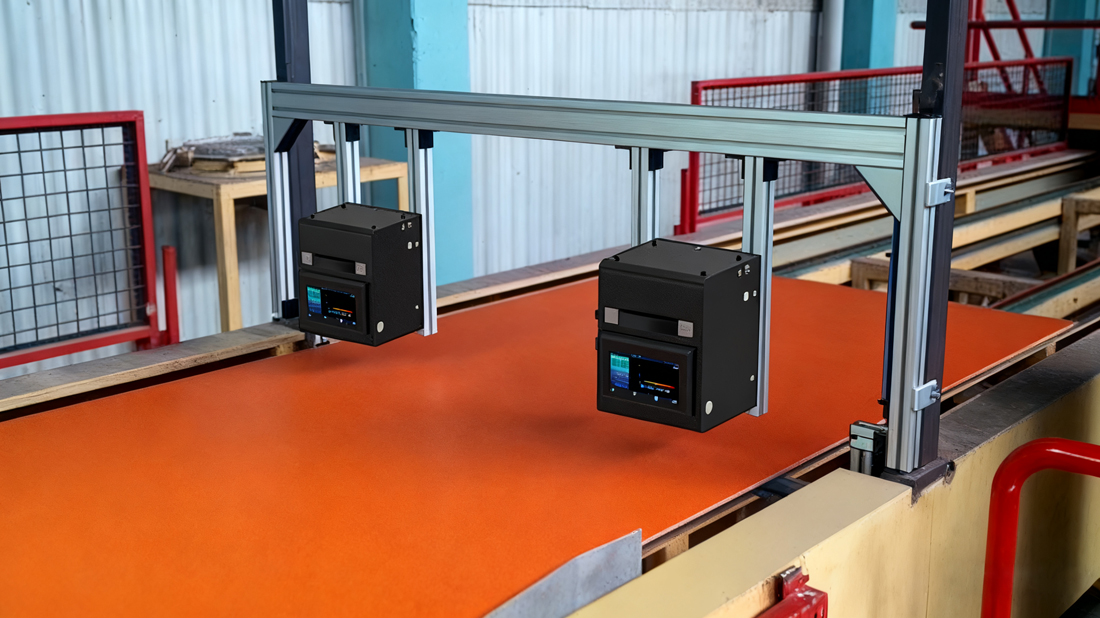

An inline spectrophotometer for color is simply a device that is mounted directly over or beside a production line. Spectrophotometers are placed inline for the detection of color as the material is passing, be it pellets, sheets, films or liquids. Each spectrophotometer internally illuminates the surface with controlled light and subsequently, measures the reflected spectrum.

The device calculates:

• L, a, b* color coordinates

• ΔE values (color difference from standard)

• Pass/fail results based on defined tolerances

The upside to this process is that measurements can be taken confidently and without any contact to the subject. Unlike old sampling methods that relied on laboratory analysis, inline spectrophotometers provide color measurements immediately and continuously. The system can perform self corrections to prevent drift, for example, altering the dose of pigment and altering the mixer speed.

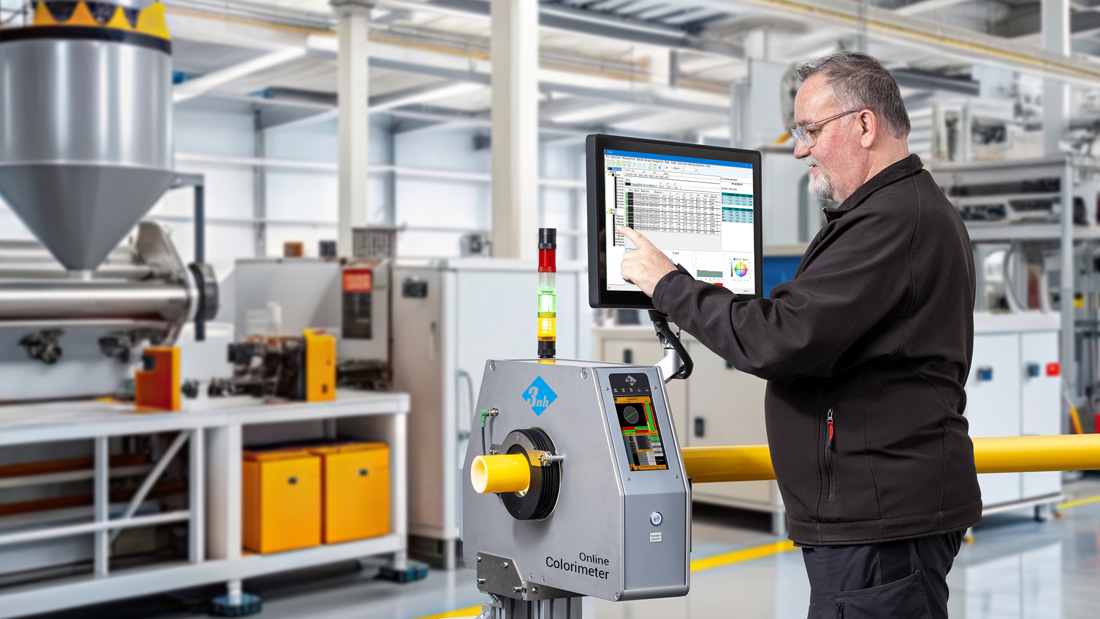

Inline Colorimeters: Simpler but Limited

An inline colorimeter also measures color but in a simpler way. Instead of analyzing the full spectrum, it uses fixed filters—typically red, green, and blue bands—to estimate color values.

An inline colorimeter is:

• Fast and cost-effective

• Good enough for tasks that only need a rough measurement.

• Valuable as a first alert system in any process

The inline colorimeter is a good tool but not in more demanding environments. They lack the ability to switch off different illuminants, detect metamerism, and manage complex pigment interactions. Because of this, spectrophotometers are used during process control and colorimeters provide control for any secondary processes.

Inline Spectrophotometer Compare to Colorimeter

Inline Spectrophotometer:

• Uses sensors to detect and measure all wavelengths of a light source

• Advanced technology and greater cost

• R&D, demanding production control, and complex colors

• Excellent for detecting subtle changes in a sample

Inline Colorimeter:

• Uses a filter to detect specific wavelengths and provides gross color values

• Moderate cost and quality

• Routine quality control and quick in-line checks

• Adequate for basic checks to be performed

• In industries where reproducible and repeatable results are a prerequisite, spectrophotometers are the undisputed gold standard.

Linking Color Measurement to Material Consistency

Inline spectrophotometers can do a lot more than just measure color and can provide a clue to the compactness or consistency of a material.

• Pigment or filler streaks can be a result of poorly mixed elastic.

• Light scattering changes with density variations and microvoids in a product.

• Reflection can change with uneven surface textures and consistent pigment ratios.

Color reproducibility can be used to detect stability within a process.

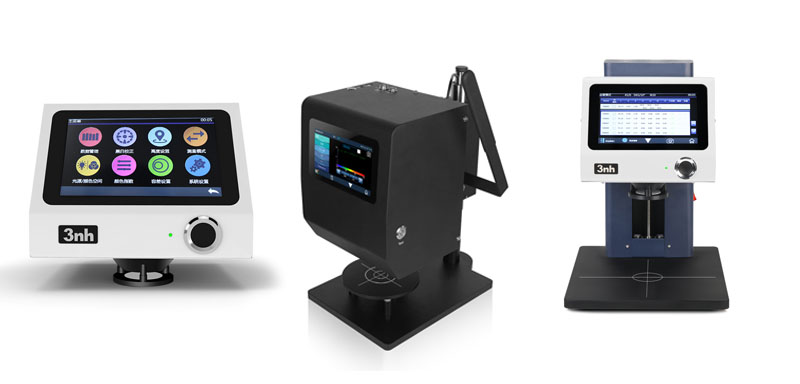

3NH’s Role in Inline Color Control

3NH makes a full range of instruments including spectrophotometers, colorimeters, haze meters, gloss meters, and light booths. This company makes instruments geared toward the lab and toward production and keeps consistency in measurements all the way from R&D to the final product.

3NH spectrophotometers are designed with:

• High accuracy: full spectral data for every visible light range and all full spectrum

• Fast response: can read multiple times a second for routine monitoring

• Rugged construction: can be integrated into industrial locations without worry

• Easy connectivity: supports interfaces with PLC, SCADA, and MES systems

• Consistent calibration: inline, portable, and benchtop instruments consistent and cross aligned

In inline environments, 3NH technology provides the balance of spectral depth, speed, and durability required by modern production.

Use Cases of Inline Spectrophotometers and Colorimeters

Plastics and Polymers

Pigmentation consistency is maintained by continuously scanning pellets, films, and extruded sheet. Inline pigment dosing is automatically corrected if any drift happens.

Paints and Coatings

Uniformity of shade is required for wet paints, powders, and even the finished coatings. Spectrophotometers measure any changes right before the finalization of the batch.

Textiles and Printing

Inline color control in continuous roll-to-roll operations makes certain every part of the fabric or print passes color specifications.

Food and Ceramics

Some industries must ensure that their goods do not deviate in appearance, such as baked goods, beverages, glazes, and decorative ceramics, and they employ inline colorimeters and spectrophotometers for this purpose.

Benefits of Using Inline Color Measurement

• Real-time monitoring: Deviation monitoring in real-time as opposed to after production is more efficient.

• Automatic correction: Integrated systems automatically adjust pigment or process changes.

• Reduced waste: Work and batch rejection are minimized, less rework is done, and raw material loss is lower.

• Consistent quality: Every batch produced is consistent with the customer’s quality expectations.

• Data traceability: Closed color value systems to record data for compliance and audits.

Why Choose 3NH Inline Solutions?

In color inline control, manufacturers seek precision, dependability, and integration. 3NH Solutions offers:

• Spectrophotometer-level precision for robust color applications.

• Colorimetric systems for more basic inline control in lower budget scenarios.

• Dependable alignment with production systems.

• Established dependability through multiple industries on a global scale.

3NH helps businesses close the gap between R&D measurements and inline quality assurance by fusing laboratory-grade precision and industrial durability. Provide one stop online measurement and intelligent surface measurement solutions.

Conclusion

When it comes to high-speed production, keeping colors consistent is a must. Inline spectrophotometer and inline colorimeter systems change color control from a reactive process to a proactive one. They provide real-time feedback so you can ensure that every product is at the highest quality, minimizes waste, and saves your brand from reputational damage.

Because of 3NH’s color science expertise and extensive product range, they are the preferred partner of clients looking for consistent, reliable, and efficient inline color measurement solutions.

Get in touch with 3NH to ask about inline spectrophotometers and colorimeters designed for your industry.
