YS6002-M Benchtop Color Haze Meter

    The YS6002-M benchtop transmittance color haze meter is a domestic color h

PRODUCT DETAILS

    The YS6002-M benchtop transmittance color haze meter is a domestic color haze meter independently developed by 3nh with independent intellectual property rights. The instrument meets the transmission D/0 (diffuse illumination, 0° direction reception) geometry specified by CIE 15 Optical structure (it can also achieve approximate transmission 0/0 (parallel light illumination/0 degree reception) geometrical optical structure). The instrument's lighting source is a 360-780nm composite full-spectrum LED light source (D65), and the 10nm interval spectral collection is achieved through a precision concave grating and a 256-pixel CMOS detector. Accurate testing of various optical indicators (haze, transmittance, chromaticity, color difference, yellowness, whiteness, cobalt platinum index, Gardner index, etc.) is achieved in accordance with industry standards. It is widely used in the national standard pharmacopoeia color measurement, glass processing, plastic processing, film, display processing, packaging industry, liquid chemical analysis and other industries for haze analysis and transmittance testing. It supports trace transmission measurement.


Features of YS6002-M Benchtop Color Haze Meter

    a. High hardware configuration: 7-inch TFT pure color capacitive touch screen; 20000 storage space; concave grating;


    b. Higher optical configuration and optical resolution, 154mm integrating sphere, concave grating, 256 pixel CMOS detector, dual optical path;


    c. Use a 360-780 full-spectrum combined LED light source with high life and low power consumption (close to the D65 light source spectrum);


    d. Easily realize the accurate test of C/A/D65 light source haze (ASTM D1003/1044), transmittance, cobalt platinum index, Gardner index;

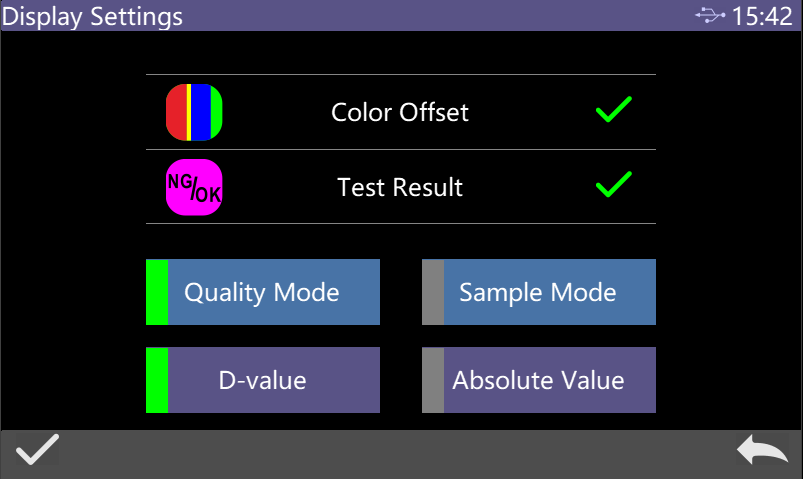

    e. Multiple measurement modes: quality control mode, sample mode, to meet the needs of more customers;


    f. Independent light source detector and temperature sensor, always monitor light source and environmental changes to ensure reliable test data;

    g. Two standard observer angles of 2/10, multiple light source modes, multiple color systems, meeting multiple standard chromaticity indicators, and meeting various customer requirements for chromaticity testing;


    h. Good man-machine interaction and test accuracy and stability;


    i. PC software has powerful function extensions;



    Technical Parameters of YS6002-M Benchtop Transmittance Color Haze Meter

                      Model                      YS6002-M
                      Optical Geometry                      Transmittance:d/0 (diffuse illumination, 0°direction reception);
similar to CIE15 standard 0/0(diffuse illumination, 0°direction reception);
Confirms to the standard of ASTM D1003/1044, CIE No.15, GB/T 3978, GB2893, GB/T 18833, ASTM E308, DIN5033 Teil7
                      Application                      National standard pharmacopoeia color measurement, glass processing, plastic processing, film, display processing, packaging industry, liquid chemical analysis and other industries are widely used in haze analysis and transmittance testing, supporting trace transmission measurement
                      Intergrating Sphere Size                      Φ154mm
                      Light Source                      360~780nm combined LED light source
                      Spectroscopic method                      Concave-Grating
                      Detector                      256 Image Element Double Array CMOS Image Sensor
                      Wavelength Range                      360~780nm
                      Wavelength Pitch                      10nm
                      Half Bandwidth                      10nm
                      Reflectance Range                      0~200%
                      Measurement Aperture                      Transmittance: Φ25.4mm/Φ4mm
                      Color Spaces                      CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99
                      Color Difference Formulas                      ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
                      Other Colorimetric Data                      Haze (ASTM D1003/1044), Transmittance T,
WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
TI (ASTM E313, CIE/ISO),
Metamerism index Mt,
Staning fastness, Color fastness, Absorbance,
APHA/Hazen/Pt-Co (Platinum Cobalt Index), Gardner Index,
Saybolt (Sybert Index), ASTM D1500 color scale, Chinese Pharmacopoeia color
                      Observer Angle                      2°/10°

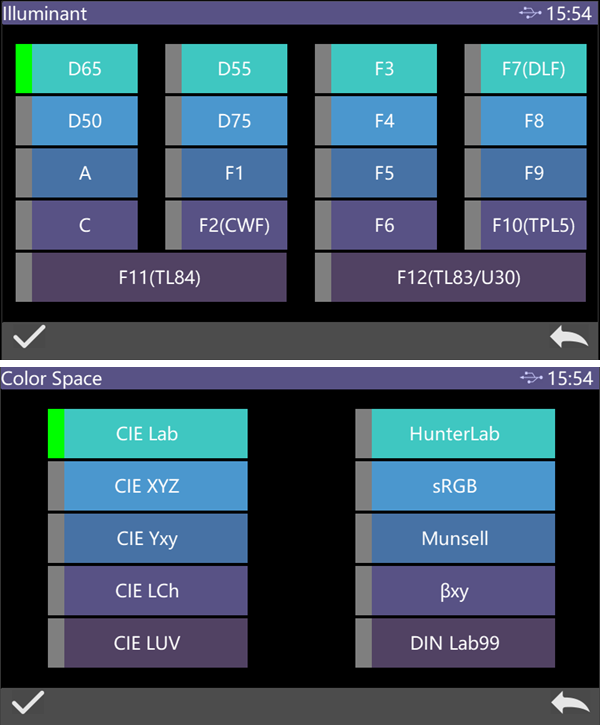

                      Illuminant                      D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30
                      Display Data                      Spectral graph/data, sample chromaticity value, color difference value/graph, chromaticity graph, color simulation, pass/fail result, color offset
                      Measurement Time                      About 1.5s
                      Repeatability                      Spectral transmittance: test transmission reference white standard deviation within 0.05% (400~700nm: within 0.04%):
Chromaticity value: Φ25.4mm, ΔE*ab within 0.03 (After the instrument is warmed up and calibrated, the average value of 30 times of transmission reference white is measured at an interval of 5s)
                      Inter-instrument Agreement                      Φ25.4mm, within ΔE*ab 0.2 (the average value measured by the original 5 standard transmission color plates)
                      Size                      370X300X200mm(L*W*H)
                      Weight                      About 9.6kg
                      Power                      DC 24V,3A Power Adapter
                      Illuminant Life Span                      5 years, more than 3,000,000 times measurement
                      Screen                      7-inch TFT Capacity Touch Screen Display
                      Interface                      USB,Printing Port
                      Storage                      Standard:5000; Sample:20000
                      Language                      Simplified Chinese, Traditional Chinese, English
                      Working Temperature                      0~40℃(32~104°F)
                      Storage Temperature                      -20~50℃(-4~122°F)
                      Standard Accessory                      Power adapter, manual, quality management software (download from official website), data cable, reflective whiteboard, reflective blackboard, transmission blackboard, 25.4mm aperture, transmission test fixture assembly, micro-hole (4mm) transmission test fixture assembly
                      Optional Accessory                      Miniature- printer
                      Note                      The specifications are subject to change without notice.
