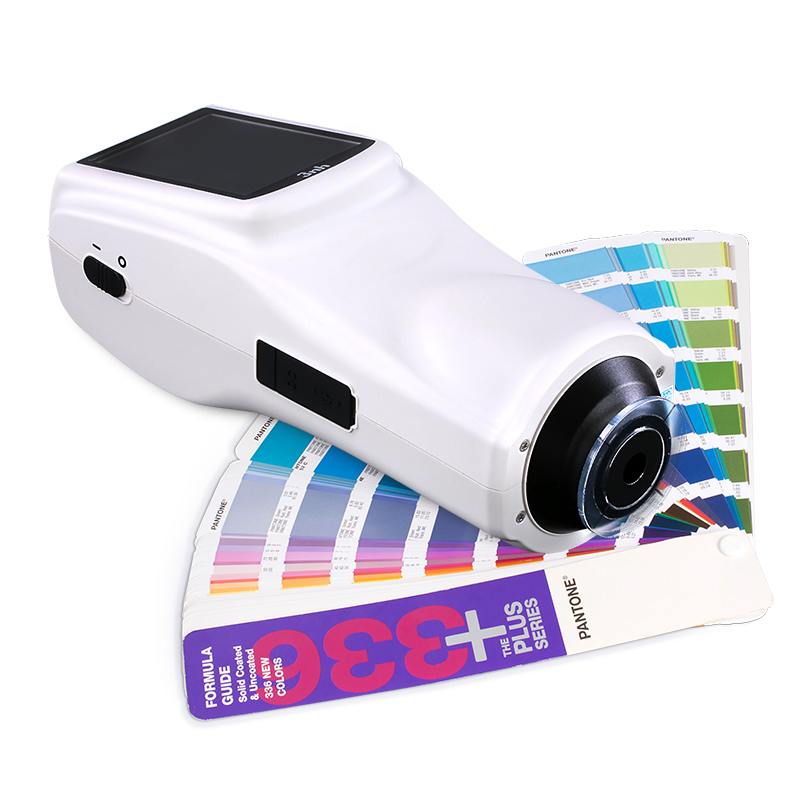

NS800 Spectrophotometer

NS800 Spectrophotometer Instructions Operating Manual NS800 Spectrophotometer PDF

This NS800 Spectrophotometer Instrument are Certified with

1 Years Warranty (Additional support period of 3 years)

NS800 Spectrophotometer: Full-Scene Color Consistency Solution

NS800 spectrophotometer uses the principle of combination LED precision spectroscopy, separates the light according to a certain wavelength interval, and adopts groups of sensor array to perform sensitive analysis. NS800 spectrophotometer with higher accuracy is very sensitive to any colors. It not only can measure L*ab value and delta E value accurately, but also can display spectral reflectance curve which can realize color matching function and calculate the real parameters of various color formulas.

In the R&D process, 3nh scientists and engineers measured various color samples from dark to light, white to black, and other standard color boards provided by ISO (International Standardization Organization). The parameters of test results are integrating with international standards.

3nh also analyzed the parameters from Japan, American and Germany spectrophotometers. The differences of L*ab absolute value between them are within ±1.5. Compared the L*ab value between NS800 and Japan spectrophotometer, when measuring any color objects, the biggest L*ab difference is within ±1.0. This is a breakthrough of 3nh high technology which realizes to be fully compatible with international market.

Product Features

1. Aesthetic design perfectly combined with ergonomics structure.

2. 45/0 geometrical optics structure, comply with CIE, ISO, ASTM, DIN standard.

3. 3.5 inch large capacitive touch screen.

4. Two standard observer perspectives, multiple light sources modes, a variety of color systems.

5. The repeatability ΔE*ab is within 0.04, the errors between each instrument ΔE* ab is less than 0.2.

6. Large capacity storage, can save more than 10000 data.

7. PC software with powerful extension functions.

8. High hardware configuration with a number of innovative technologies.

9. Oversized integrating sphere, more effective homogenization ray of lights and precise measurement.

10. 15° oblique angle screen, more in line with the human eye observation.

Application Industry

NS800 spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can measure reflectance spectrum and other color index precisely. NS800 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.

NS800 Spectrophotometer Specifications

Model	NS800
Illumination/observation system	45/0 method (45 ring-shaped illumination, vertical viewing), Comply with CIE No.15，GB/T 3978
Integrating sphere Size	Φ58mm
Light Source	combined LED sources
Sensor	Silicon photodiode array
Wavelength range	400~700nm
Wavelength interval	10nm
Reflectance range	0~200%
Measuring Aperture	Φ8mm
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV
Color difference Formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1), ΔEcmc(1:1),ΔE00
Other Chromaticity Data	WI(ASTM E313，CIE/ISO, AATCC, Hunter), YI(ASTM D1925，ASTM 313), TI(ASTM E313，CIE/ISO), Metamerism Index (Mt), Color Stain, Color Fastness
Observer	2°/10°
Illuminant	D65，A,C,D50，D55，D75，F2，F6，F7，F8，F10，F11,F12
Display Data	Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
Measurement Time	1.5s
Repeatability	Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)
Colorimetric Value	Standard deviation within Delta E*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
Inter Instrument Agreement	Within Delta E*ab 0.2 (Average for 12 BCRA Series II color tiles)
Dimension	LWH=9077230mm
Weight	600g
Battery	Li-ion battery. 5000 times within 8 hours
Lamp Life	5 years, more than 1.6 million measurements
Display Screen	TFT 3.5inch, Capacitive Touch Screen
Interface	USB/RS-232
Data Memory	1000 Standards, 15000 Samples
Operating Temperature	0~40℃(32~104°F)
Storage temperature	-20~50℃(-4~122°F)
Standard Accessory	Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap
Optional Accessory	Micro Printer, Universal Test Compon
Others	Provide complete spectrum reflectance curve, Input L, a, b value manually
Notes	The specifications are subject to change without notice

12 Quality Inspection Processes

With 12 rigorous quality inspection processes in place, we ensure a high yield rate of up to 98% for batch processed precision parts.

DFM Analysis

Dimensional Tolerance

Material Testing

CNC Machining

FQC Detection

SPC / CPK

Problem Found

Problem Solving

OQC Detection

Surface Treatment

Full Inspection

Package

Our Valued Clients

FAQs About Spectrophotometer

To answer this question, you first need to clarify your specific needs:

Is it for simple color quality control (QC)?
To coordinate with supply chain color management?
To monitor on-line color stability?
Do you require computer color matching or production color correction?
What is your budget?
Systematic supervision and evaluation of color performance in dyed products?

If you aren’t fully clear about your requirements at the initial stage, our color management engineers are ready to communicate with you. We will recommend solutions tailored to your needs. When conditions permit, we can provide prototype demonstrations and trial testing to ensure the instrument meets your practical application requirements.

Threenh Technology with excellent after sale service, Generally, Our Spectrophotometer instrument warranty is one years(Additional support period of 3 years). Within the warranty period, we can offer technique support and parts to parts change, necessarily, our engineers may go to your place for better support. Our instrument have professional After-sales Dept, if you have any technical problem or question with our goods welcome to contact us.

D/8°and 45°/0°are two kinds of illumination geometry with different optical geometry design. D/8°illumination geometry is more widely used for the color comparison and measurement of high-gloss materials; 45°/0°illumination geometry is mainly used in printing and packaging industries.

Yes. We can supply OEM and make customized design for any specific application. Our MOQ for OEM and ODM service is 5 pcs for one model. We can not only offer standard machines, but also customized machines. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.

Yes, we offer free samples for test, you are welcome to order samples to experience our excellent quality and service.
