YE0688 Real Scene Test Chart

YE0688 Real Scene Test Chart Instructions Operating Manual YE0688 Real Scene Test Chart PDF

This YE0688 Real Scene Test Chart Instrument are Certified with

1 Years Warranty (Additional support period of 3 years)

Subjective real scene test chart is based on personal subjective feelings, building a test scene, taking photos with a camera, and then subjectively judging the performance of the camera in all aspects through the photos.

The YE0688 real scene test chart has different wood patterns, sponges, brushes, feathers, black velvet, and dead leaves. The image card can be used to analyze the texture expression of the lens on different materials. There are various colored pens, pigment tubes, 24 color cards, portraits, etc. that can be used to analyze the color reproduction of the lens. The text on paper currency, the text on the label on the paint tube, and the resolution card can be used to analyze the resolution situation.

Description of YE0688 Real Scene Test Chart

	Wooden blocks, observing the texture details of the wood
Scratcher, testing the color and detail reproduction of objects by the lens

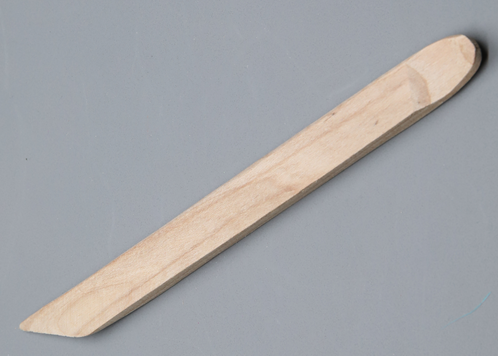

	Clay carving tools, observing the expression of wood texture

	Large dye agents in multiple colors, testing the color and text details of the lens
Brush, observing the expression of details in different colored bristles
	Feather testing can better reflect the performance of the lens in terms of gloss, chromaticity, transparency, and texture details
Stainless steel tea cup, clip, used to test the performance of metals of different colors and shapes

A set of crayons in different colors can better observe the color reproduction of matte surfaces
	Various colored square fabrics, observe the color of the fabric
Multi colored small dyes pose a challenge to lens resolution and are used to observe the color and text details of dyes
	Testing the Performance of Wood and Animal Hair Details
Skin tone test chart, used to test the restoration of three different skin tones and the detailed expression of portraits
	Sponge, used to observe the behavior of objects

	Wedge line, testing the maximum resolution of the lens
Paper currency, used to assess the clarity and color of surface text
	Wooden color palette, observing the expression of wood texture
Grid frame test card, testing the texture details of the lens
	A set of colored crayons containing different colors. Used to test color performance under light sources
Bamboo, details of testing lens
	A set of colored pencils containing multiple colors. Used to test color performance under light sources
Brush, test the color reproduction of the lens
	Leaf chart, analyzing the loss of precision details
Pure black board, analyzing low to medium contrast caused by noise or other image techniques
